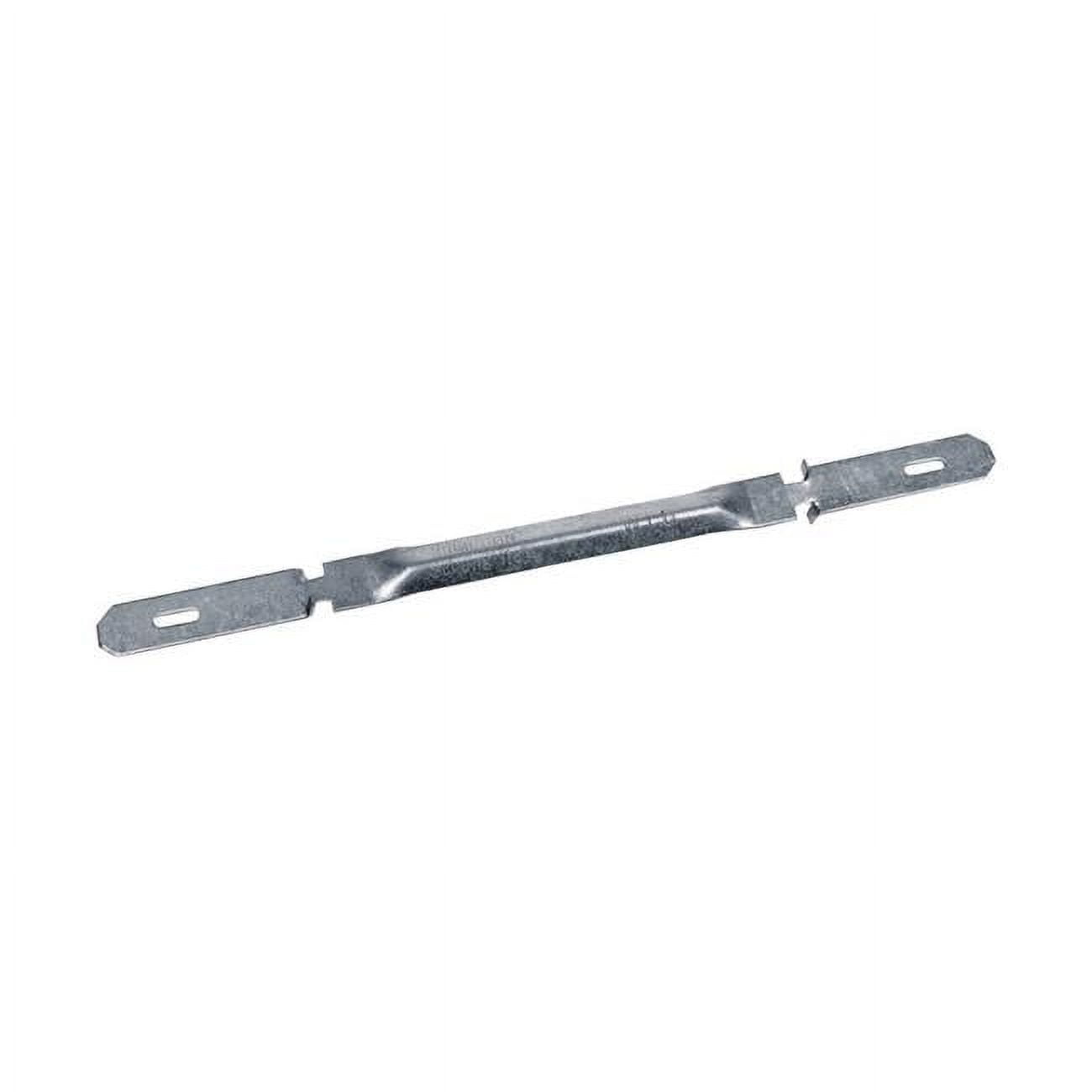

The wedge tie (WT) is a form tie that secures concrete forms in place while the concrete is poured. It easily installs between form boards and accurately spaces the forms. Several models are available for varying wall thickness and types of form boards.

• Brand Name: Simpson Strong-Tie
• Height: 2.88 in.
• Width: 6.5 in.
• Gauge: 18 Ga.
• Material: Galvanized Steel
• Product Type: Wedge Tie
• This tie is designed for low foundation wall applications
• Use (2) 3-1/2-inch long wedges for each tie
• It can be used with 2x solid sawn lumber
• 5/8-inch wide formed V design for rigidity allows: 5/8-inch wide formed V design for rigidity allows accurate form spacing and support
• Not recommended for wall pours greater than 4-foot high
