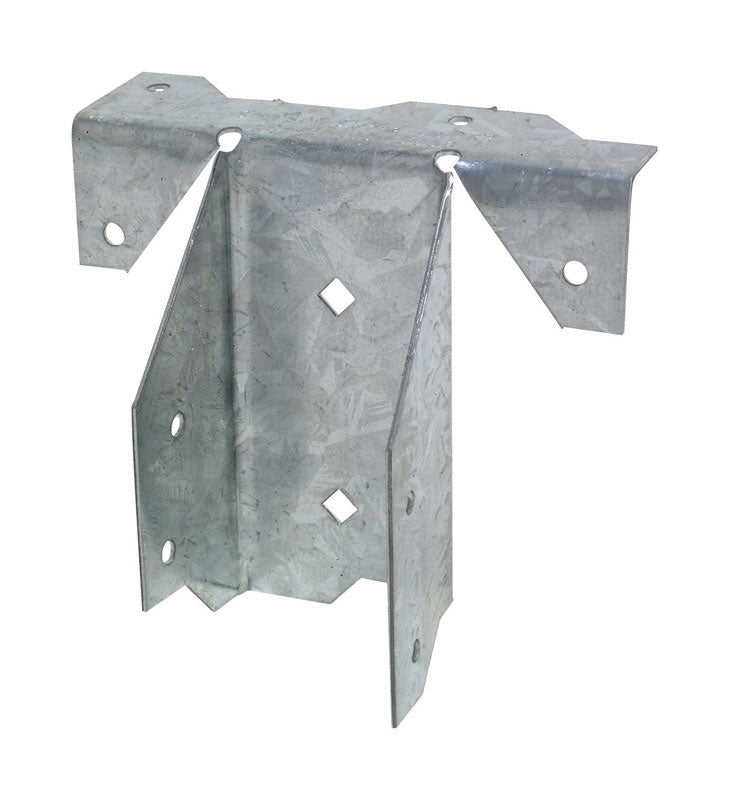

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field skewable and slopeable options. The RR provides a connection between a rafter and the ridge of a roof.

• Brand Name: Simpson Strong-Tie
• Height: 2.25 in.
• Width: 4 in.
• Gauge: 18 Ga.
• Material: Galvanized Steel
• Product Type: Ridge Rafter
• Joist Fasteners: 10d
• For 2 x 6 minimum rafter size
• For a rafter-to-face connector, flatten the top flange into the face plane
• The RR can be used with rafters sloped up to 30 deg.
• Install with 8-10d x 1-1/2 in. fasteners
