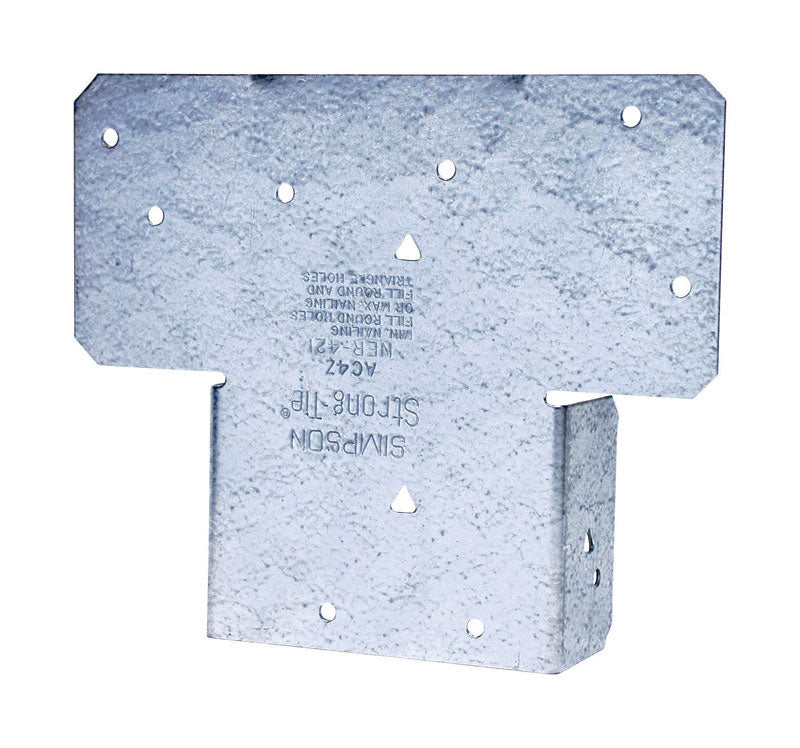

Post Caps connect tops of posts to members for a secure connection and are ideal for new or retrofit applications where structural support is needed. Post caps are available in a variety of one-piece caps for new construction and two-piece options for retrofit of existing connections. The AC series is designed to provide a positive connection between a beam and a post, these connectors are always installed in pairs.

• Brand Name: Simpson Strong-Tie
• Sub Brand: ZMax
• Height: 6.5 in.
• Width: 5.5 in.
• Gauge: 18 Ga.
• Material: Steel
• Product Type: End Post Cap
• Joist Fasteners: 16d
• Used to attach the top of posts to beams
• Approved to be installed with the specified nails: Approved to be installed with the specified nails or with Strong-Drive SD connector screws
• Features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153
