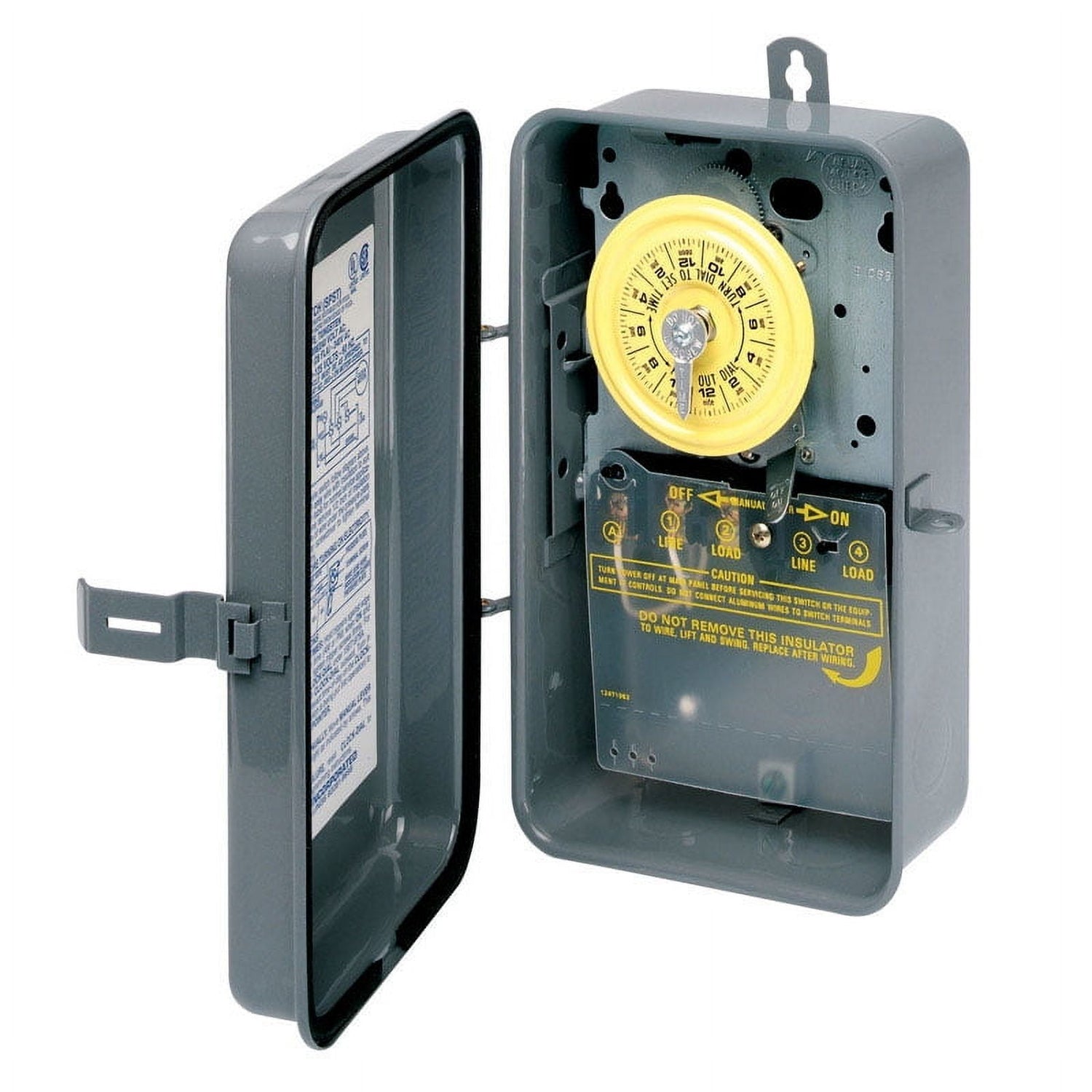

The T100 series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 amp per pole and allow for up to 12 on/off operations per day. A manual override switch provides added convenience. NEMA 3 raintight steel housing.

• Brand Name: Intermatic
• Indoor or Outdoor: Indoor and Outdoor
• Product Type: Mechanical Timer Switch
• Volts: 120 V
• Color: Gray
• Watts: 3 W
• Packaging Type: Boxed
• Programmable: Yes
• Number in Package: 1 pk
• Cycles: 24 hr
• UL Listed: Yes
• CSA Listed: Yes
• Warranty: 1 year
• Knockout Dimensions Back/Side: (1) Combination 1/2 in. - 3/4 in.
• Switch Type: SPST
• Width: 6-1/2 in.
• Knockout Dimensions Bottom: (2) Combination 1/2 in. - 3/4 in.
• Motor: 2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
• Resistive Ranges: 40 A, 120-240 VAC, 60 Hz
• Frequency: 60 Hz
• Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
• Minimum Wire Size: #14 AWG
• Wiring Option: Terminals
• Number of Circuits: 1
• Inductive Range: 40 A, 120-240 VAC, 60 Hz
• Electronic Ballast: 16 A
• Maximum Wire Size: #8 AWG
• Minimum Operating Temperature: 40 deg F.
• Pilot Duty Ranges: 1000 VA, 120-240 VAC, 60 Hz
• Depth: 3-5/8 in.
• Height: 10-1/8 in.
• Maximum Operating Temperature: 130 deg F.
