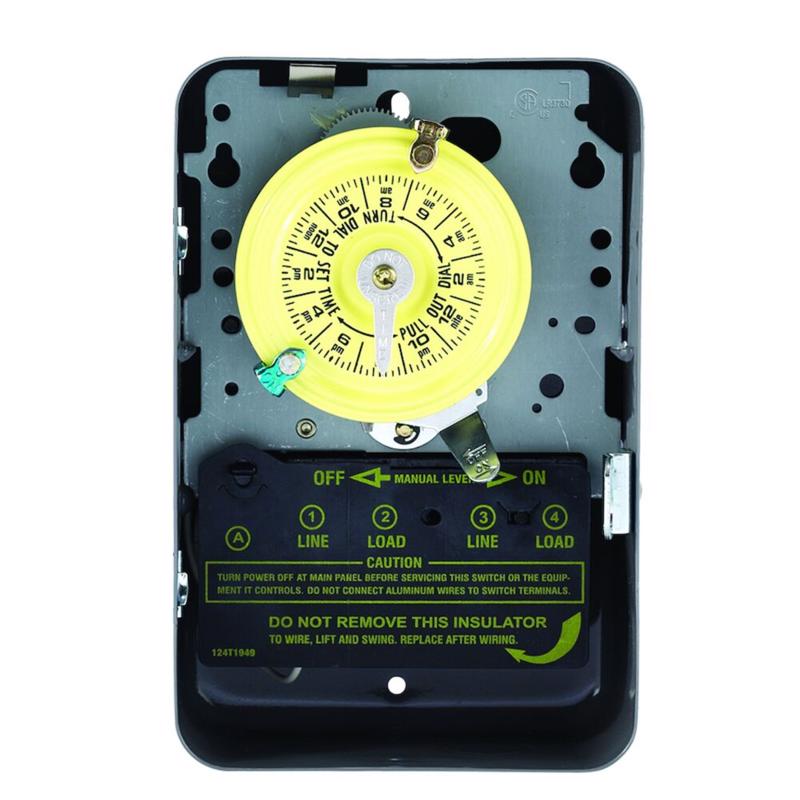

The T100 series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 amp per pole and allow for up to 12 On/Off operations per day.

• Brand Name: Intermatic
• Indoor or Outdoor: Indoor
• Product Type: Mechanical Timer Switch
• Volts: 120 V
• Color: Gray
• Watts: 3 W
• Packaging Type: Boxed
• Application: Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads
• Programmable: Yes
• Number in Package: 1 pk
• Cycles: 24 hr
• UL Listed: Yes
• CSA Listed: Yes
• Warranty: 1 year
• Knockout Dimensions Bottom: (2) combination 1/2 in. - 3/4 in.
• Switch Type: DPST
• Minimum On/Off Times: 1 hour
• Tungsten Range: 40 A, 120-240 VAC, 60 Hz
• Operation Temperature: -40 degree F to 130 degree F
• Inductive Range: 40 A, 120-240 VAC, 60 Hz
• Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
• Motor: 2 HP, 24 FLA at 120 VAC, 60 Hz;5 HP, 28 FLA at 240 VAC, 60 Hz
• Pilot Duty Range: 1000 VA, 120-240 VAC, 60 Hz
• Enclosure Type: Indoor Type 1 Metal
• Maximum On/Off Operations: 12
• Number of Circuits: 1
• Resistive Range: 40 A, 120-240 VAC, 60 Hz
• Knockout Dimensions Back/Side: (1) combination 1/2 in. - 3/4 in.
• Wire Size Maximum: No.8 AWG
• Wire Size Minimum: No.14 AWG
• Wiring Option: Terminals
• Electronic Ballast: 16 A
