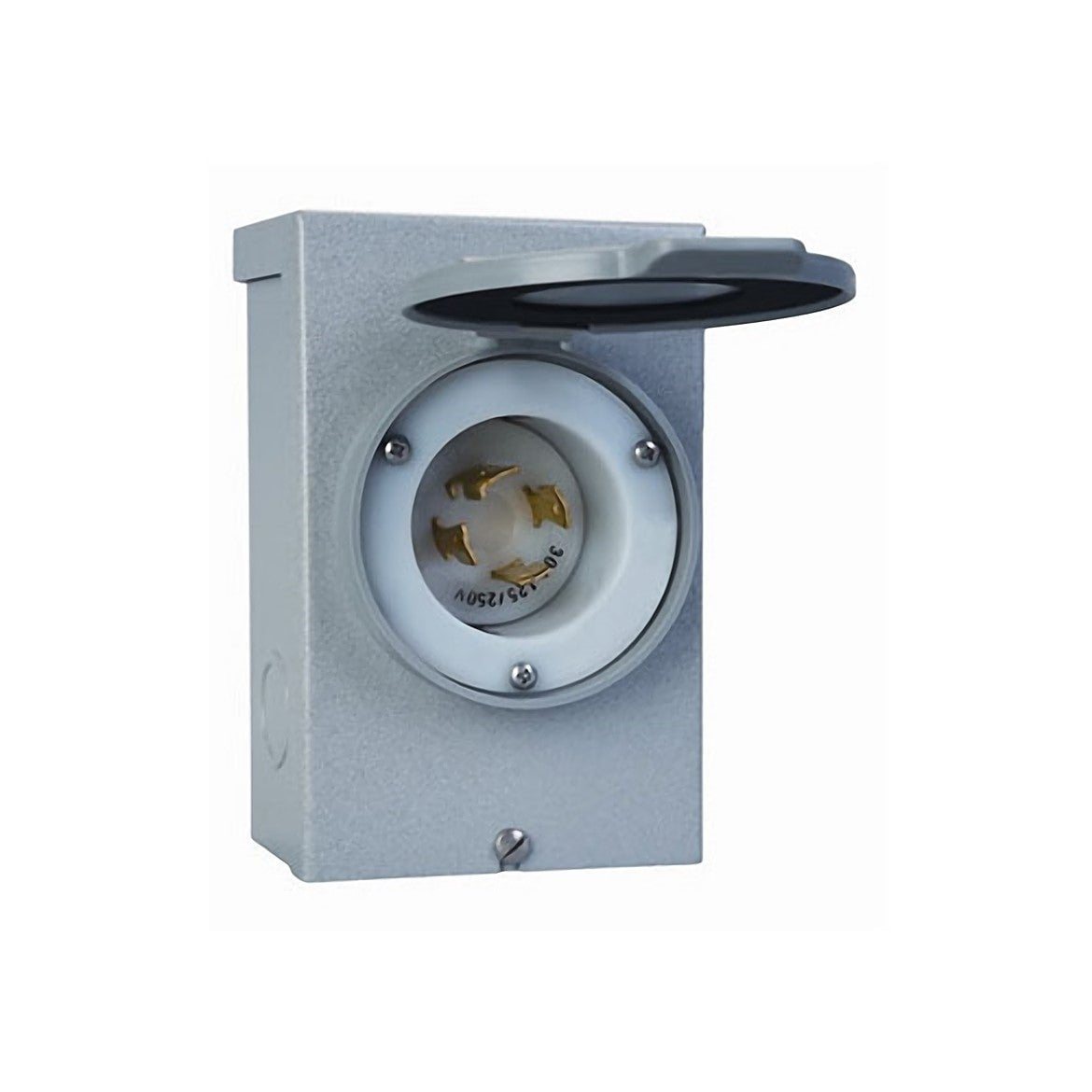

Reliance Controls 20 amps 125/250 V 1 space 4 circuits Surface Mount Power Inlet Box (PB-20)
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Ships within 5-7 business days.
Reliance Controls 20 amps 125/250 V 1 space 4 circuits Surface Moun...
The rain tight NEMA 3R power inlet box is designed for the use with the Pro/Tran transfer switches and Reliance Panel/Link manual transfer panels and generator ready load centers. The power inlet box may be installed indoors or outdoors in an open area where the generator is being used. Using one of the four combination 1/2 inch and 3/4 inch knockouts (one on each side, bottom and back) the power inlet box can be wired directly to the transfer switch or panel.
- Brand Name: Reliance Controls
- Amps: 20 amps
- Volts: 125/250 V
- Number of Spaces: 1 space
- Maximum Number of Circuits: 4 circuits
- Mounting Type: Surface Mount
- Product Type: Power Inlet Box
- Depth: 2-5/8 in.
- UL Listed: Yes
- Packaging Type: Boxed
- Breakers Included: Yes
- Circuit Protection Type: Single Pole
- Height: 6 in.
- Width: 4 in.
- Indoor or Outdoor: Outdoor
- Can be hardwired directly to manual transfer switch or transfer panel

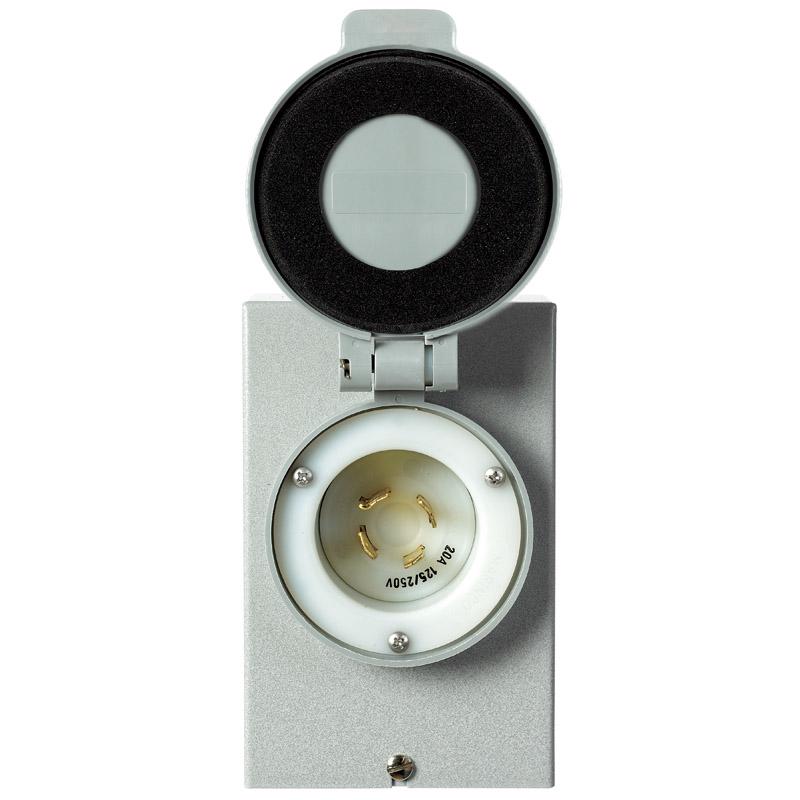

- Includes a NEMA L14-20P flanged inlet plug, inlet: Includes a NEMA L14-20P flanged inlet plug, inlet cover, four combination 1/2 and 3/4 inch knockouts
- Rated for 20Amp at 125/250VAC
MPN: PB-20
UPC: 851890000072
