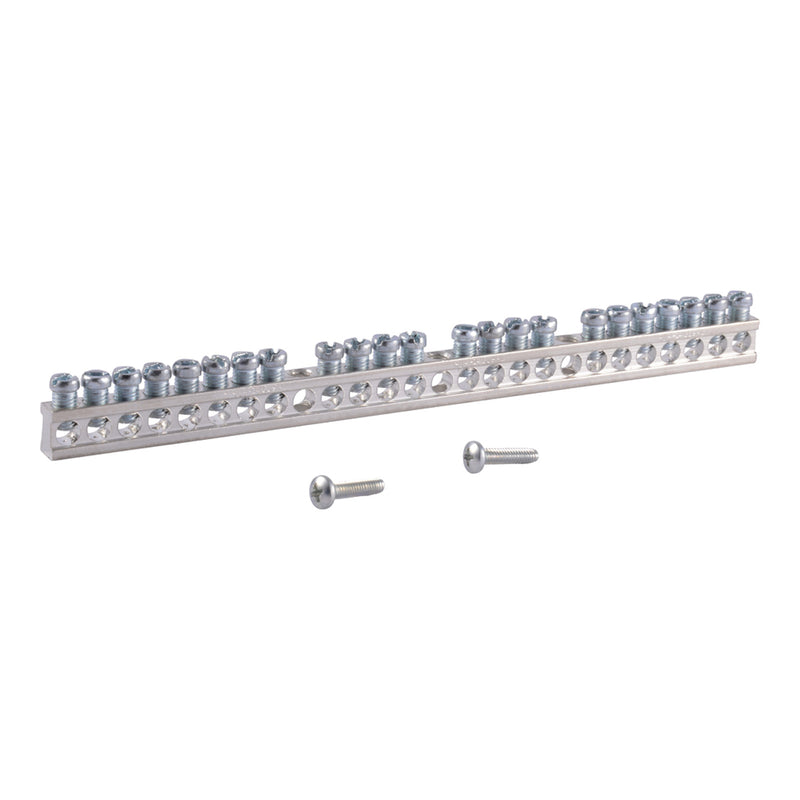

The Square D by Schneider Electric Ground Bar Kit is an important accessory in your home or business electrical load center. The aluminum 23 terminal ground bar kit is used in Square D load centers, CSED devices and NQOD and NF panel boards. The kit has 23 terminals, each accepting (1) #14 - #4 copper wire or (1) #12 - #4 aluminum wire or (2) #14 - #12 copper wire or (2) #12 - #10 aluminum wire.

• Brand Name: Square D
• Amps: 200 amps
• Volts: 120/240 V
• Number of Spaces: 23 space
• Maximum Number of Circuits: 40 circuits
• Mounting Type: Combination Mount
• Product Type: Ground Bar Kit
• Depth: 1.6 in.
• UL Listed: Yes
• Packaging Type: Boxed
• Circuit Protection Type: Main Lug
• Height: 3.3 in.
• Width: 8.0 in.
• Indoor or Outdoor: Indoor
• Each terminal accepts (1) #14-#4 copper wire or (1) #12-#4 aluminum wire or (2) #14-#12 copper wire or (2) #12-#10 aluminum wire
• 23 terminals
• Feeds wires to neutral bar in load center
