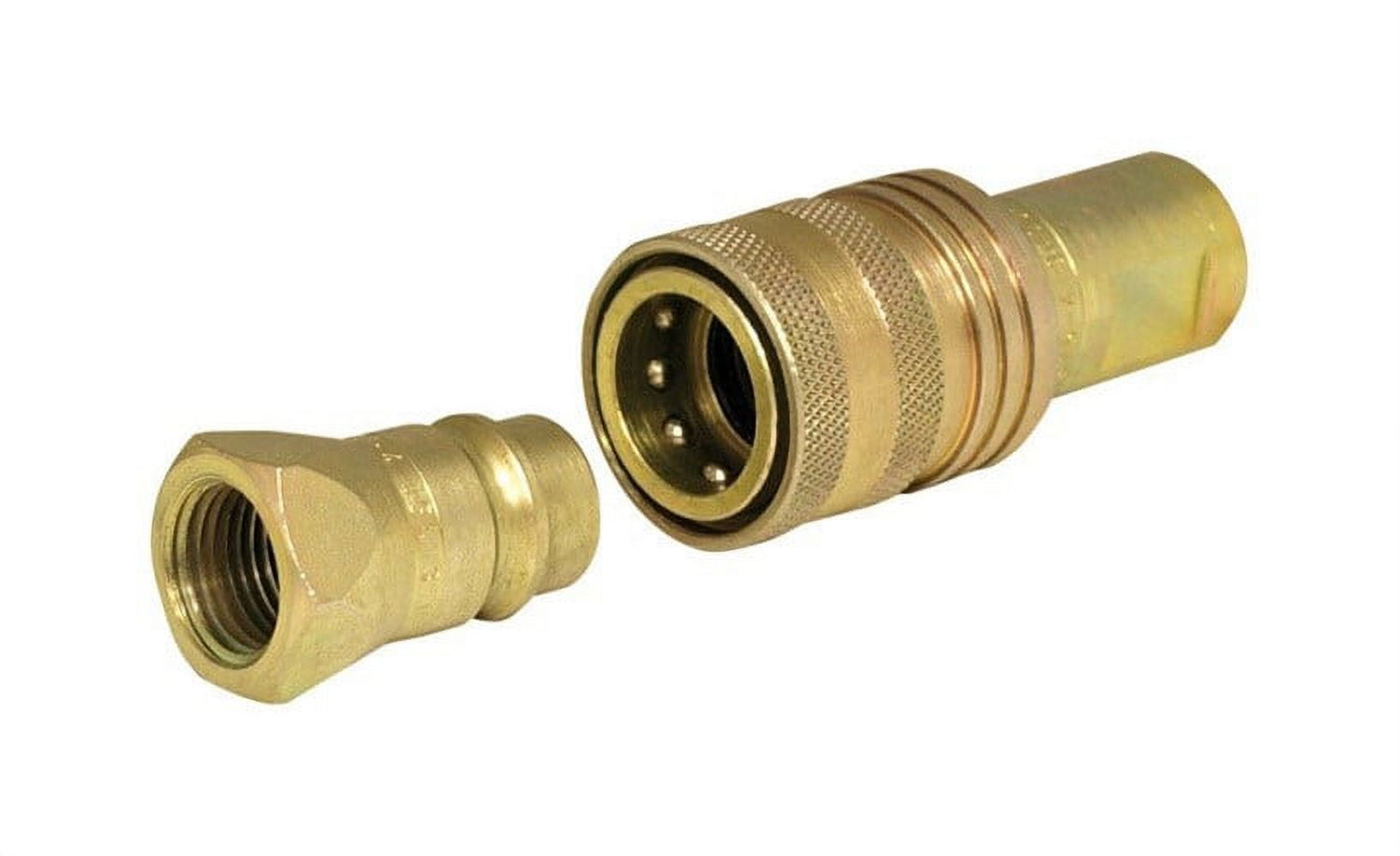

Sets have an ISO 5675 body and include a S75 coupler and S71 plug combination. The unique internal valving automatically opens the hydraulic circuit after connection, if the system is in operating mode. When mounted to a bulkhead, the two-way double acting sleeve allows one-hand operation under full pressure and implement break-away. Critical parts are hardened for long service life. Interchangeable with Parker/Pioneer 8200 Series.

• Brand Name: Apache
• Material: Steel
• Inlet Diameter: 1/2 in.
• Outlet Diameter: 1/2 in.
• Product Type: Hydraulic Coupler
• Number in Package: 1 pk
• Inlet: FPT
• Maximum Pressure: 3000 psi

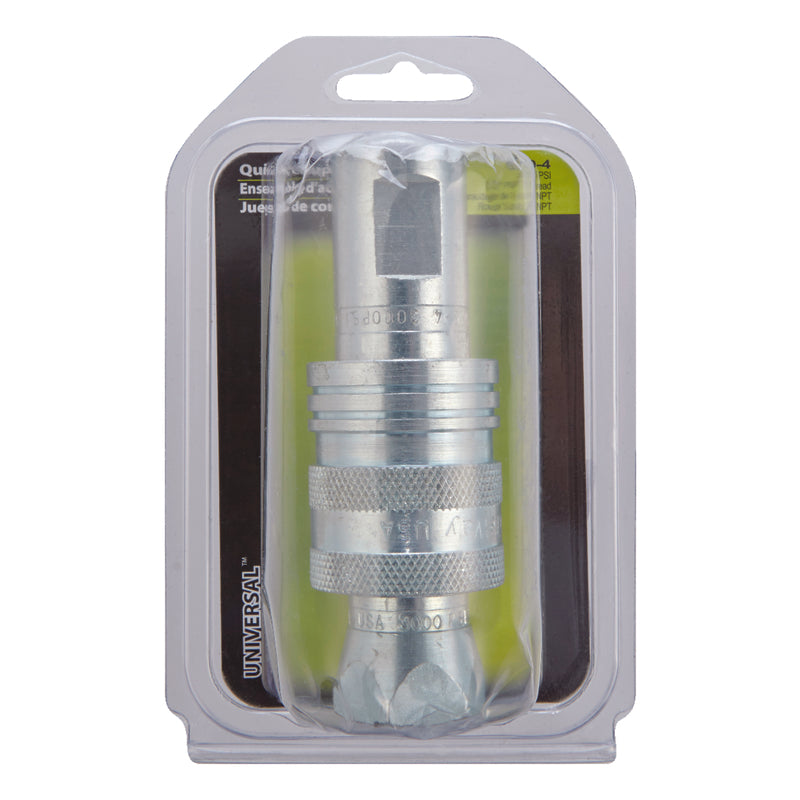

• Packaging Type: Clamshell
• 1/2" Body Coupler Set (Ball) 1/2" FNPT
• All poppet valve models are 100% leak tested before leaving the factory
• Critical parts are hardened for long service life
