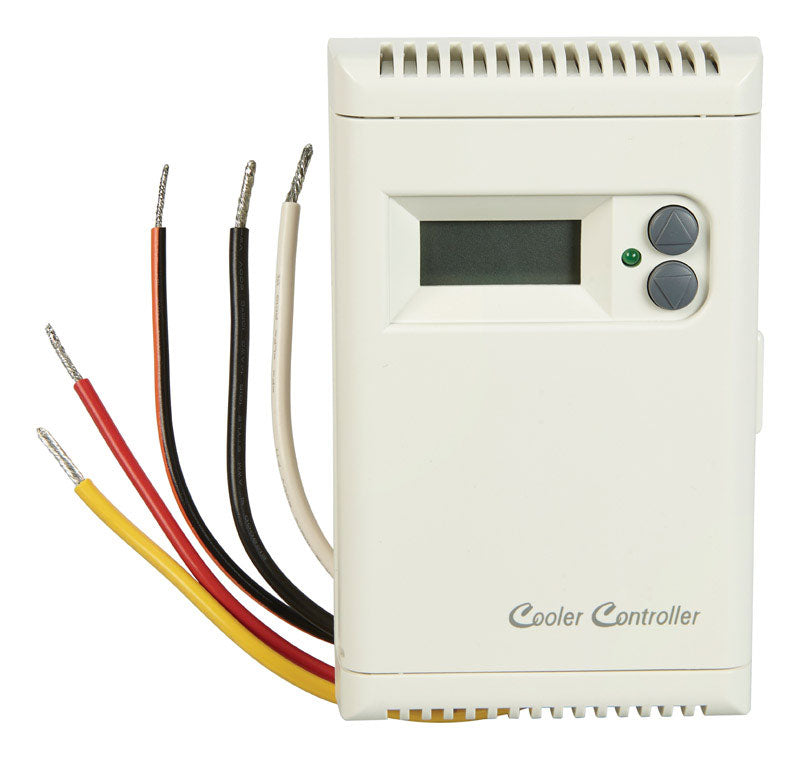

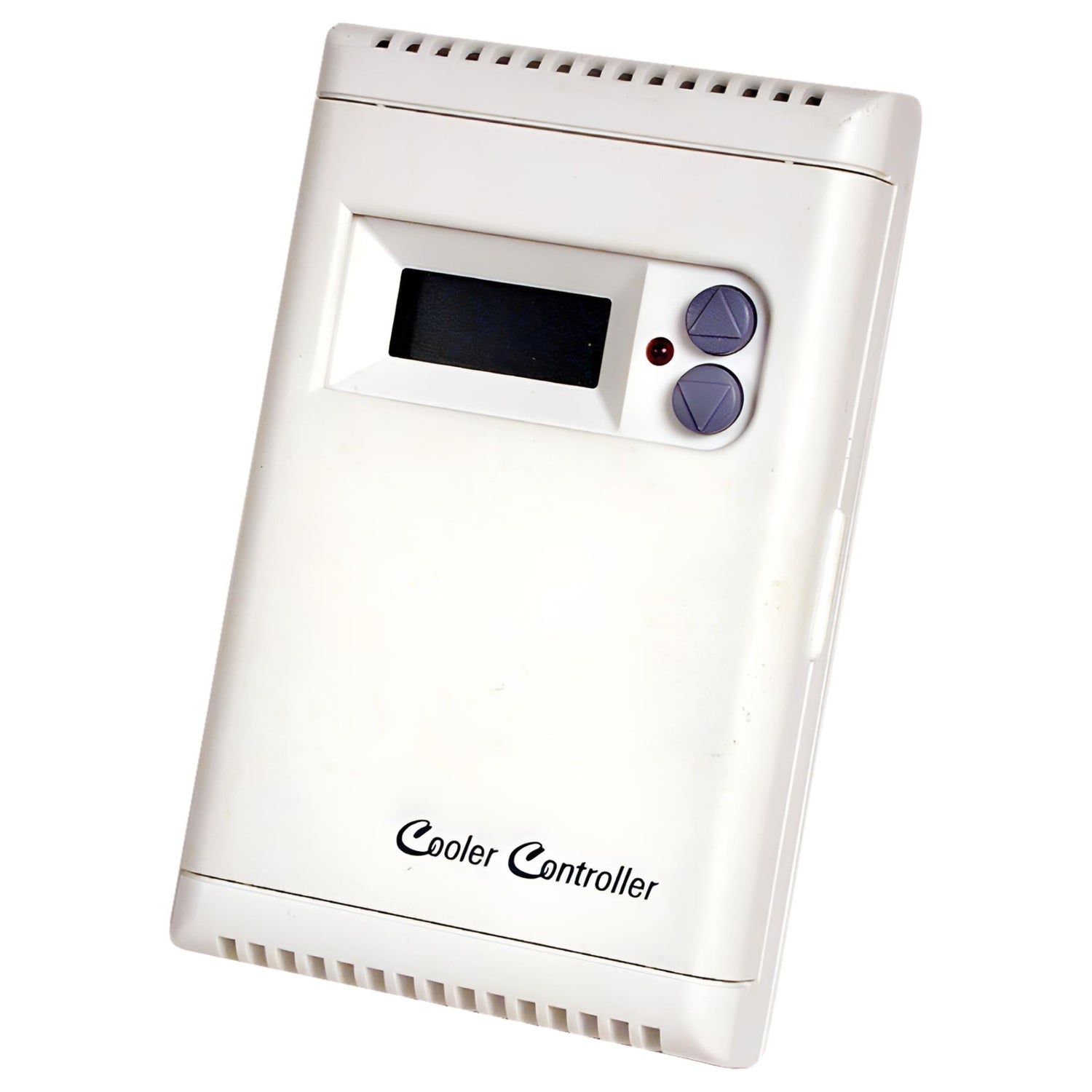

Designed for use with 1/2, 3/4 and 1 HP, 1-speed and 2-speed, 115V and 230V cooler motors.

• Brand Name: Dial
• Sub Brand: Cooler Controller
• Height: 4-1/2 in.
• Width: 2-7/8 in.
• Color: White
• Material: Plastic
• Product Type: Evaporative Cooler Thermostat
• Packaging Type: Clamshell
• Depth: 2 in.
• Compatibility: 1 and 2 Speed Motors From 1/3 to 1 HP
• Evaporative Cooler Digital Controller automatically turns an evaporative cooler On/Off at you pre-programmed temperature setting
• Simple single touch temperature adjustment
• All controls are concealed behind the attractive cover
• Compatible with 1 and 2 speed motors from 1/3 to 1 HP
• For 115V (volt) and 230V evaporative coolers
• To ensure that the cooler pads are fully wetted out before the blower engages, there is an adjustable 0, 2 and 4 minute, pre-wet cycle
• Room temperature is constantly displayed on the LCD (liquid crystal display) screen
• Optional manual controls allow for low and high fan-only operation and pump-only pre-wetting
