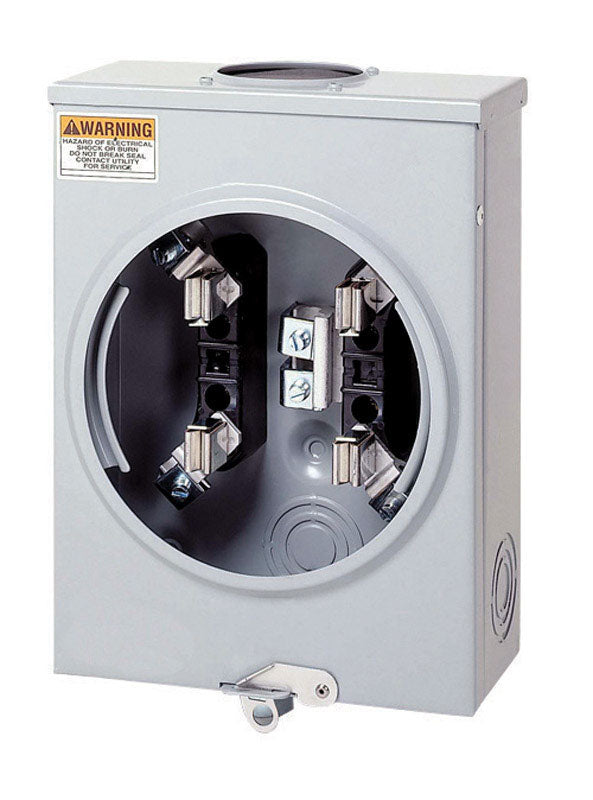

Eaton 100 amps Ring Overhead/Underground Meter Socket (URRS101LCH)
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Ships within 5-7 business days.
Eaton 100 amps Ring Overhead/Underground Meter Socket
All Eaton sockets are rated 600 VAC maximum and either 100, 200 or 320A continuous. All have a minimum short circuit rating of 10000 RMS symmetrical amperes (watt hour meter is not included in rating). All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Each utility determines meter socket requirements per local codes and we offer a variety of designs to meet virtually any local utility specification.
- Brand Name: Eaton
- Amps: 100 amps
- Socket Type: Ring
- Service Feed Type: Overhead/Underground
- Product Type: Meter Socket
- Breakers Included: No
- Number of Phases: 1
- Mounting Type: Surface Mount
- Depth: 10.88 in.
- ANSI Certified: Yes
- UL Listed: Yes
- Width: 8 in.
- Packaging Type: Boxed
- Volts: 600 V
- Nema Type: 3R
- Maximum Amperage: 125 amps
- Length: 3.5 in.
MPN: URRS101LCH
UPC: 782114004050
