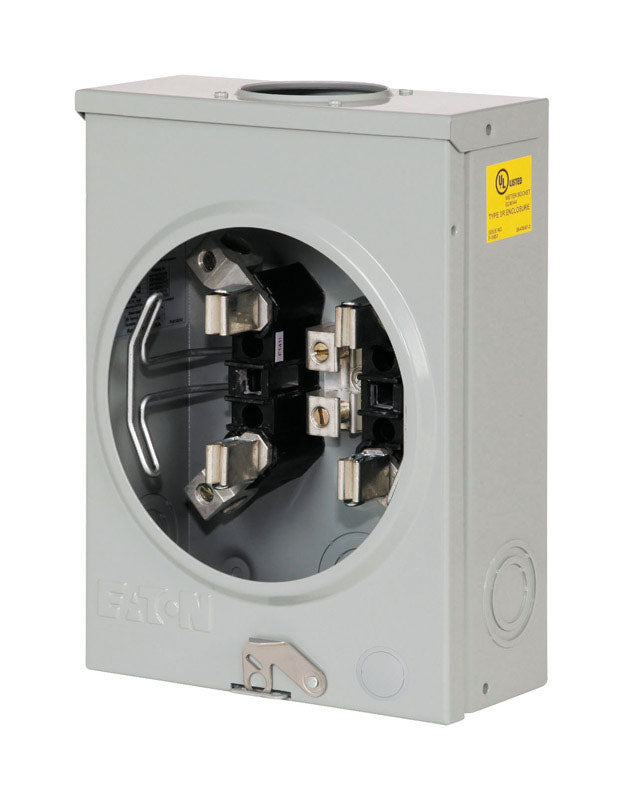

All Eaton sockets are rated 600 VAC maximum and either 100, 200 or 320A continuous. All have a minimum short circuit rating of 10000 RMS symmetrical amperes (watt hour meter is not included in rating). All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Each utility determines meter socket requirements per local codes and we offer a variety of designs to meet virtually any local utility specification.

• Brand Name: Eaton
• Sub Brand: Cutler-Hammer
• Amps: 200 amps
• Socket Type: Ringless
• Service Feed Type: Overhead
• Product Type: Meter Socket
• Indoor or Outdoor: Outdoor
• Number of Gangs: 1 gang
• Breakers Included: No
• Number of Phases: 1
• Mounting Type: Surface Mount
• ANSI Certified: Yes
• UL Listed: Yes
• Packaging Type: Boxed
• Volts: 600 V
• Nema Type: 3R
• Maximum Amperage: 200 amps
• Length: 15.75 in.
• AEP approved
• No. 250 kcmil connectors
• Small hub opening
• Single meter socket with cover
• Barrel lock provision
• OH with horn bypass
