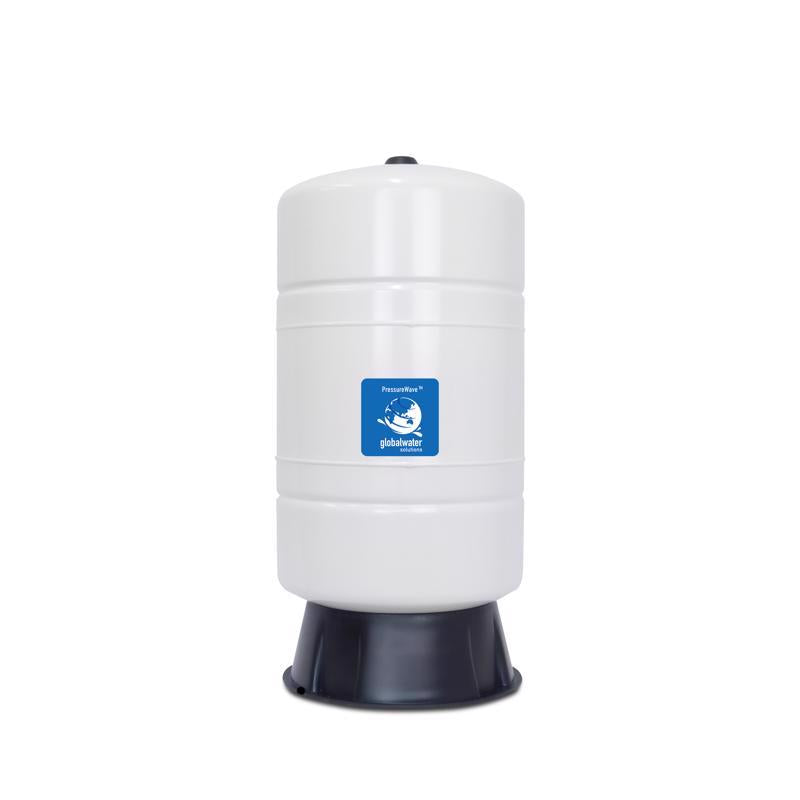

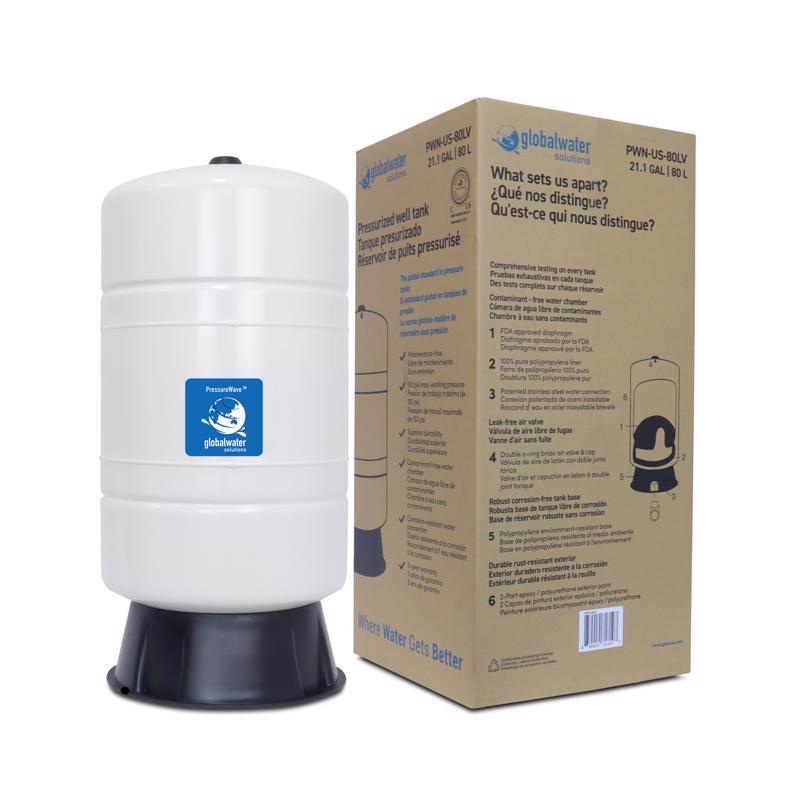

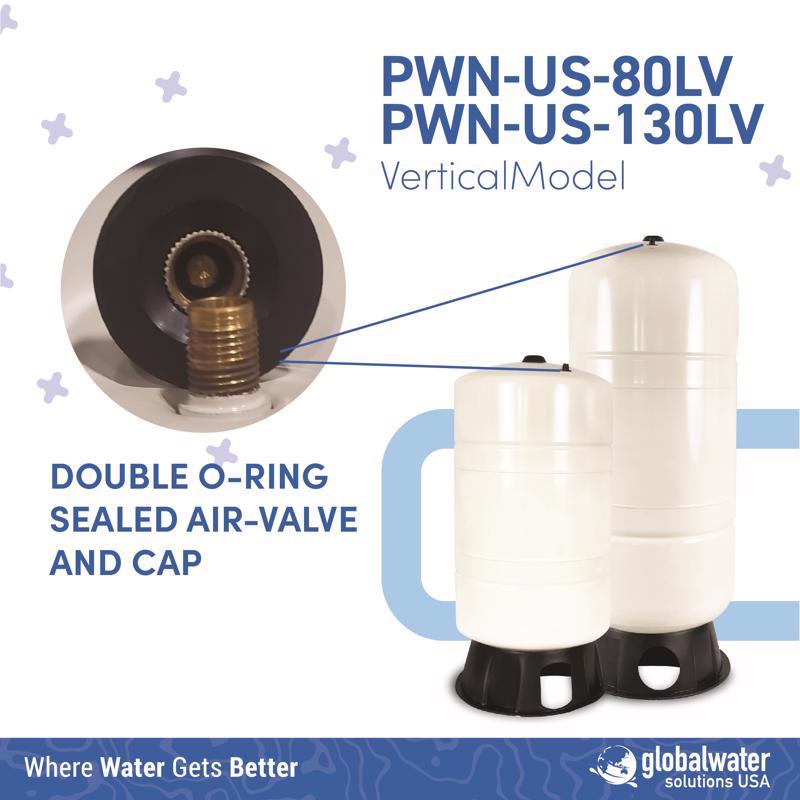

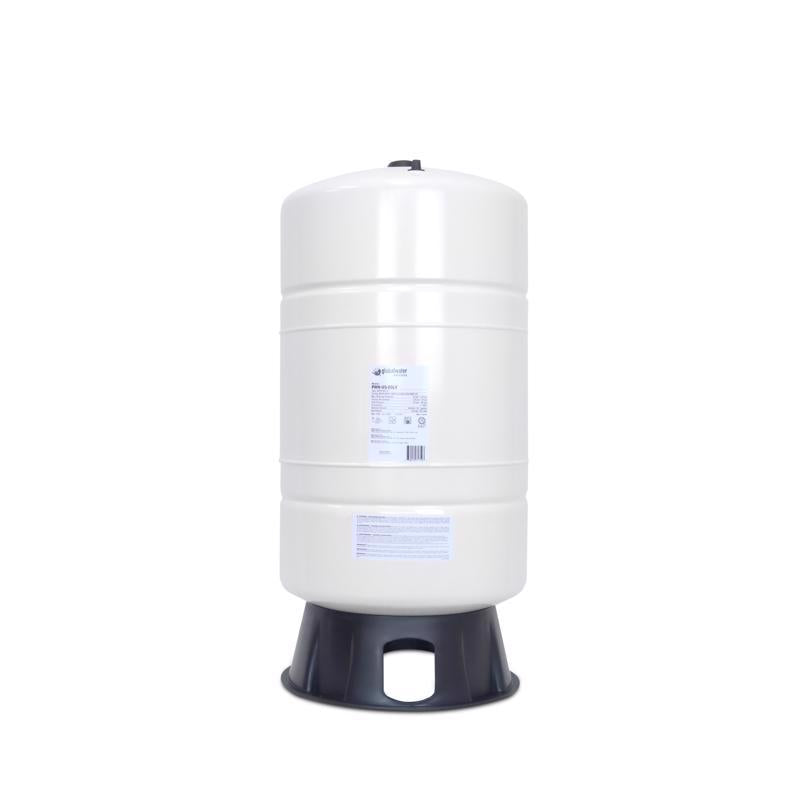

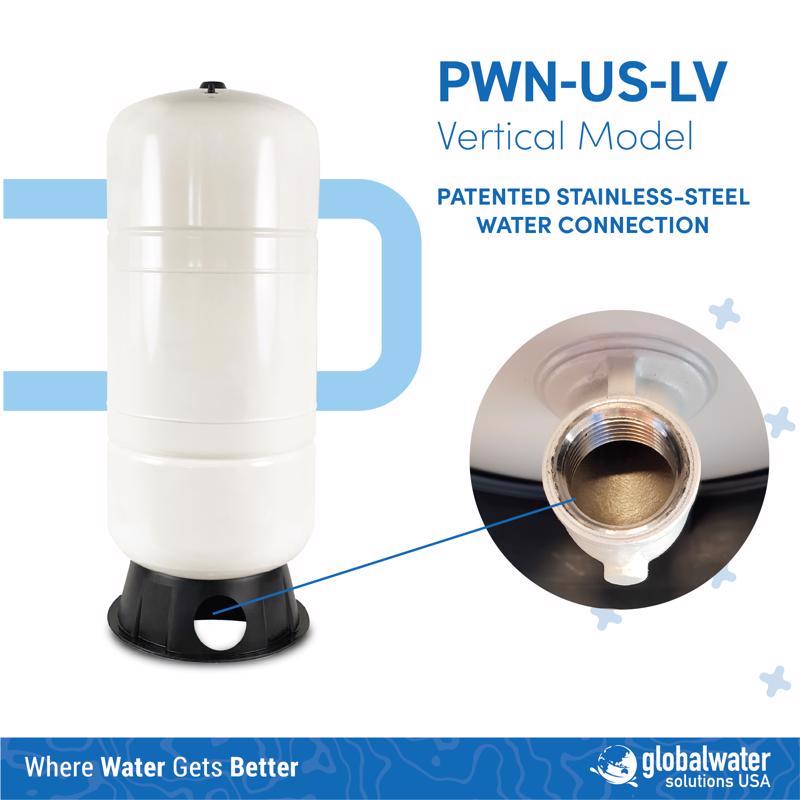

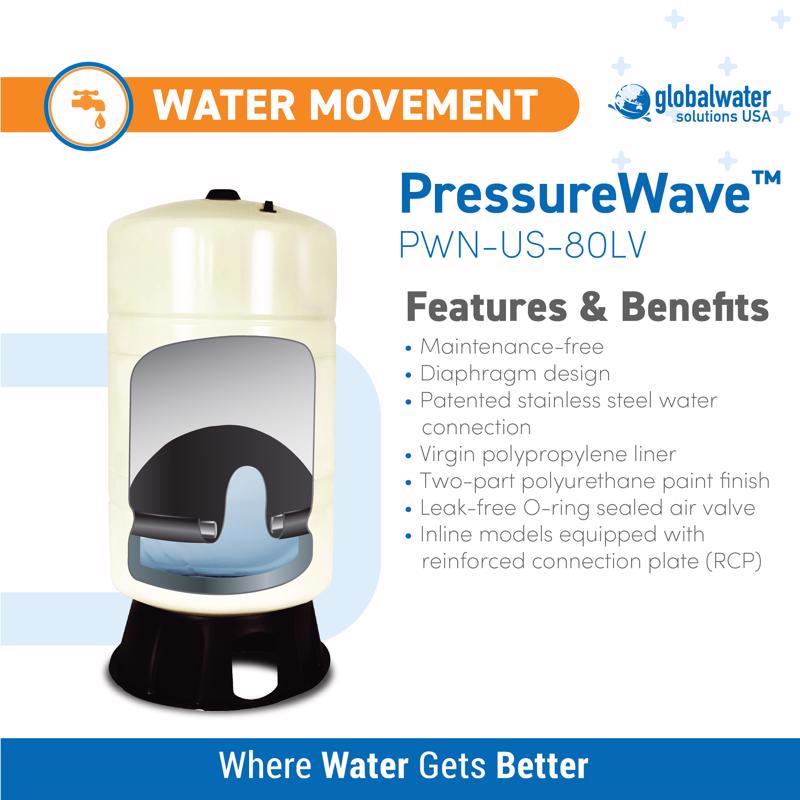

PressureWave tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems, and hydraulic hammer arresting. The PressureWave Series is constructed of a virgin polypropylene liner combined with an FDA compliant high-grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded O-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless-steel water connection. The diaphragm and liner are both reinforced in specifi c wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak-free and maintenance-free pressure tank.

• Brand Name: Global Water Solutions
• Sub Brand: PressureWave
• Capacity: 21.1 gal
• Product Type: Pre-Charged Vertical Pressure Well Tank
• Height: 32.08 in.
• Width: 15.3 in.
• Depth: 15.3 in.
• Color: Almond/Black
• Maximum Temperature: 194 �F
• Gender: Female
• UL Listed: No
• Packaging Type: Boxed
• Material: Steel
• Connection Type: NPT
• Connection Size: 1 in.
• Lining Material: Polypropylene
• Maximum working pressure: 10 bar / 150 psi
• Factory pre-charge: 1.9 bar / 28 psi
