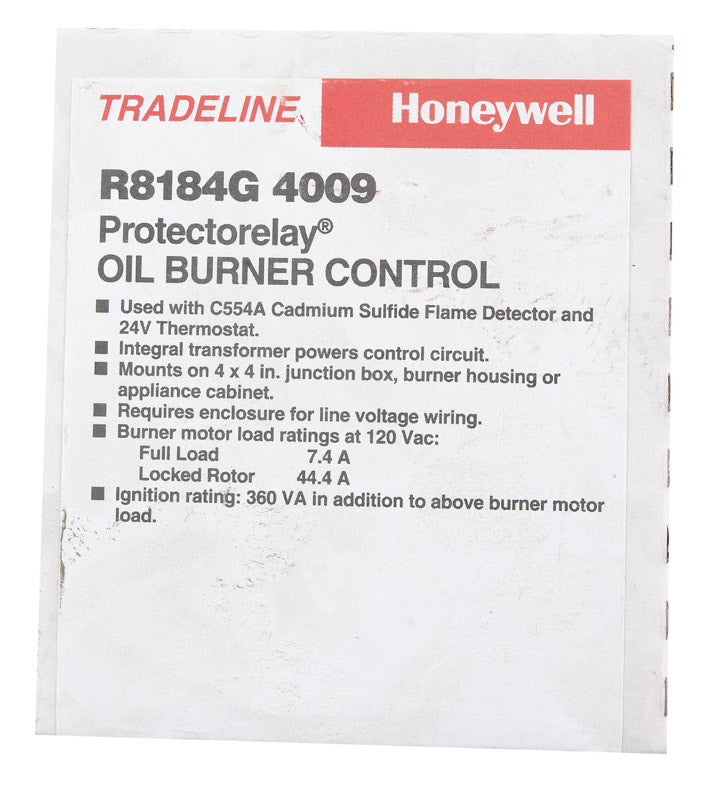

The Honeywell Protecto Relay provides intermittent ignition oil primary controls to operate the oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat in oil burner systems. Manual trip safety switch lever and lockout indicator light is on the terminal strip which indicates system lockout. Has color-coded lead wires to make it easy for line voltage connections.

• Brand Name: Honeywell
• Volts: 120 V
• Product Type: Oil Burner Control
• Application: For oil burner system
• Maximum Temperature: 130 �F
• CSA Listed: Yes
• Mounting Type: Direct Mount
• UL Listed: Yes
• Packaging Type: Boxed
• Domestic / Import: Domestic
• Electrical Ratings (Full Load): 7.4 amps
• Voltage Rating: 240 vac
• Width: 4-1/8 in.
• Electrical Ratings (Locked Rotor): 44.4 amps
• Height: 4-3/8 in.
• Ignition Type: Intermittent
• Depth: 2-1/2 in.
