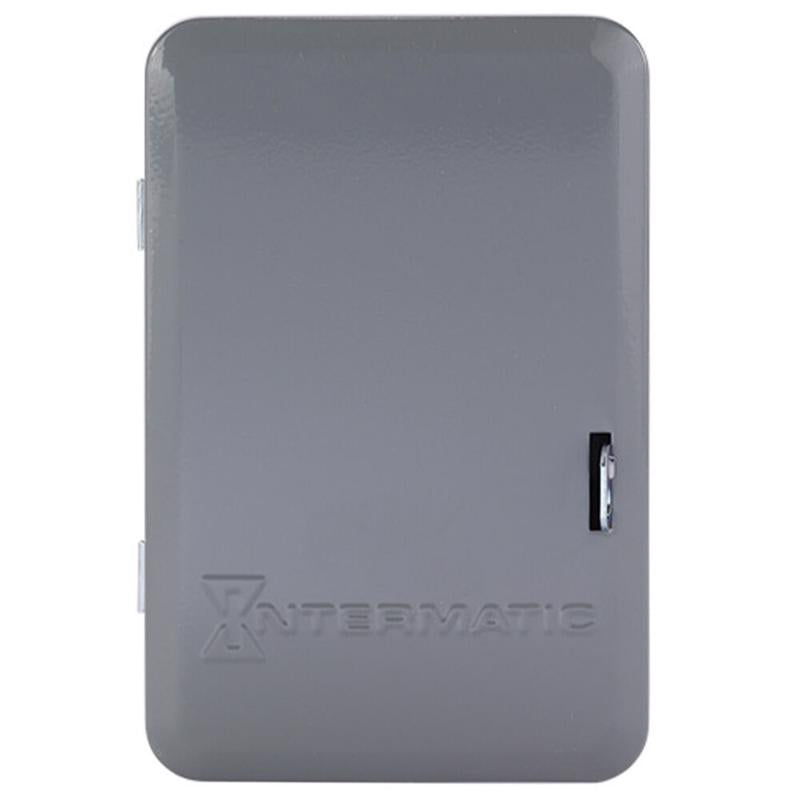

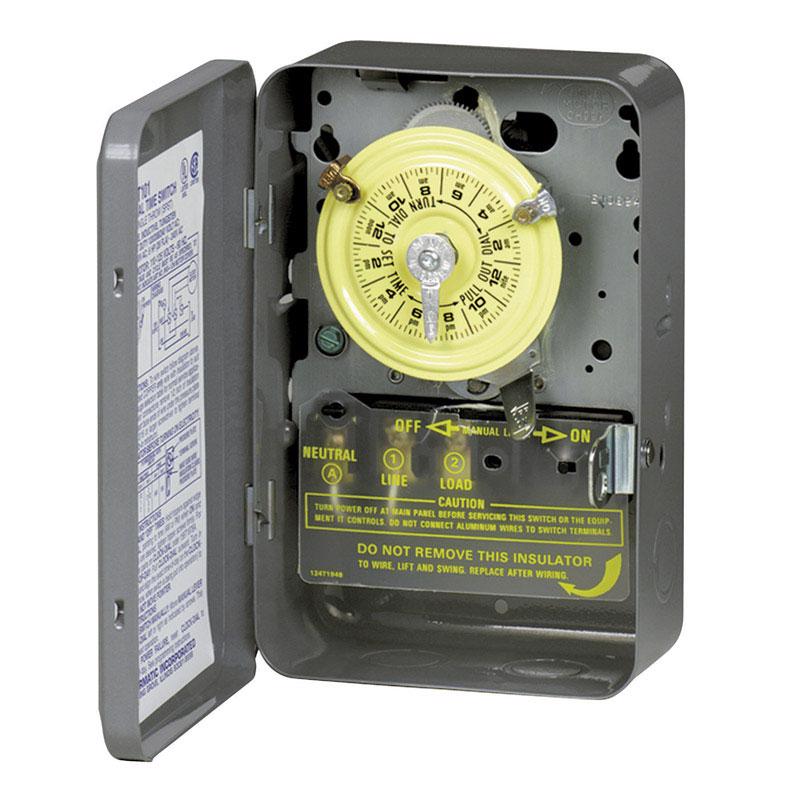

The T100 series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 amp per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.

• Brand Name: Intermatic
• Indoor or Outdoor: Indoor
• Product Type: 24 Hour Mechanical Timer
• Volts: 120 V
• Color: Gray
• Watts: 3 W
• Packaging Type: Boxed
• Application: CFL, LED and Incandescent
• Programmable: Yes
• Number in Package: 1 pk
• UL Listed: Yes
• CSA Listed: Yes
• Warranty: 1 year
• Knockout Dimensions Left: (1) Combination 1/2 in. - 3/4 in.
• Motor: 2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
• Operating Temperature Min - Maximum: -40 - 130 degree Fahrenheit
• Width: 5 1/8 in.
• Wire Size Maximum: No. 8 AWG
• Electronic Ballast: 16 A
• Wire Size Minimum: No. 14 AWG
• Electronic Ballast Load Ratings Ranges: 16 A, 120 VAC
• Number Of Circuits: 1
• Heigh: 7 7/8 in.
• Knockout Dimensions Back: (2) Combination 1/2 in. - 3/4 in.
• Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
• Depth: 3 7/16 in.
• Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
• Switch Type: SPST
• Tungsten Ranges: 40 A, 120-240 VAC, 60 Hz
• Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
• Maximum ON/OFF Operations: 12
