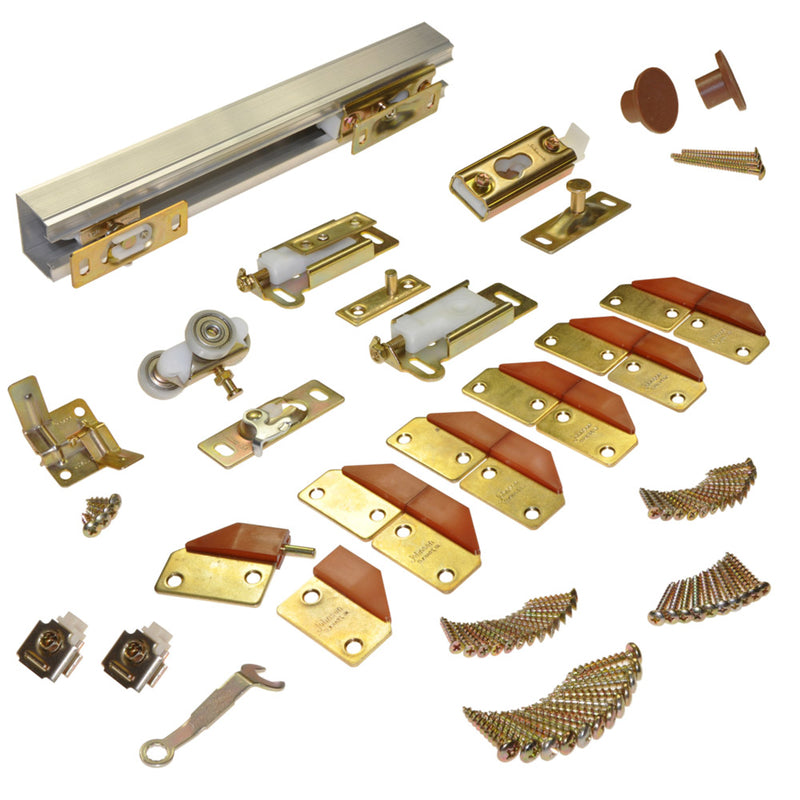

The panel hardware set includes patented tricycle hangers with large ball bearing wheels that ride smoothly and quietly on convex shaped rails with precise single point contact. The hangers feature a quick disconnect clip system to facilitate easy mounting.

• Brand Name: Johnson Hardware
• Sub Brand: 100FD
• Material: Aluminum
• Product Type: Bi-fold Hardware Kit
• Packaging Type: Boxed
• Commercial or Residential: Commercial and Residential
• Mounting: Top
• Application: Bi-Fold Doors
• Hardware Included: Yes
• Maximum Panel Width: 18 in.
• Wheel Diameter: 1 in.
• Maximum Weight Per Door: 75 lb.
• Number of Panel: 4 panels
• Steel Components: 12-14 Gauge
• Track Length: 72 in.
• Panel Thickness: 1-1/8 to 1-3/4 in.
