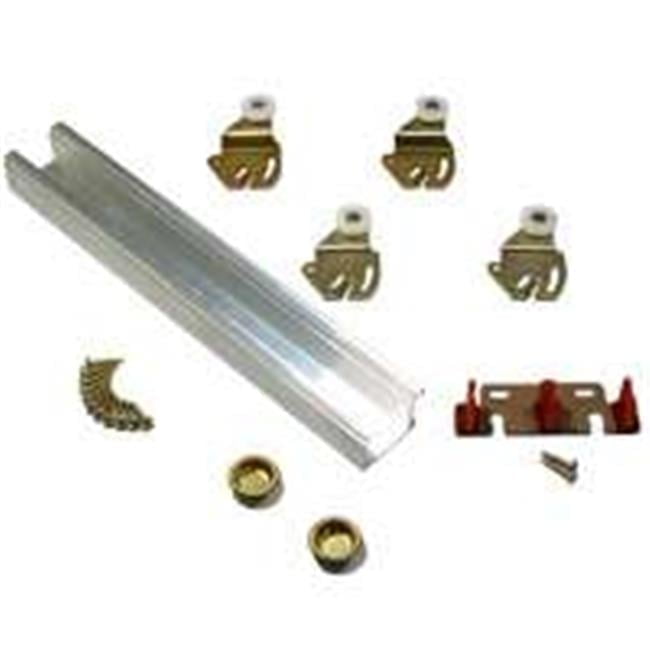

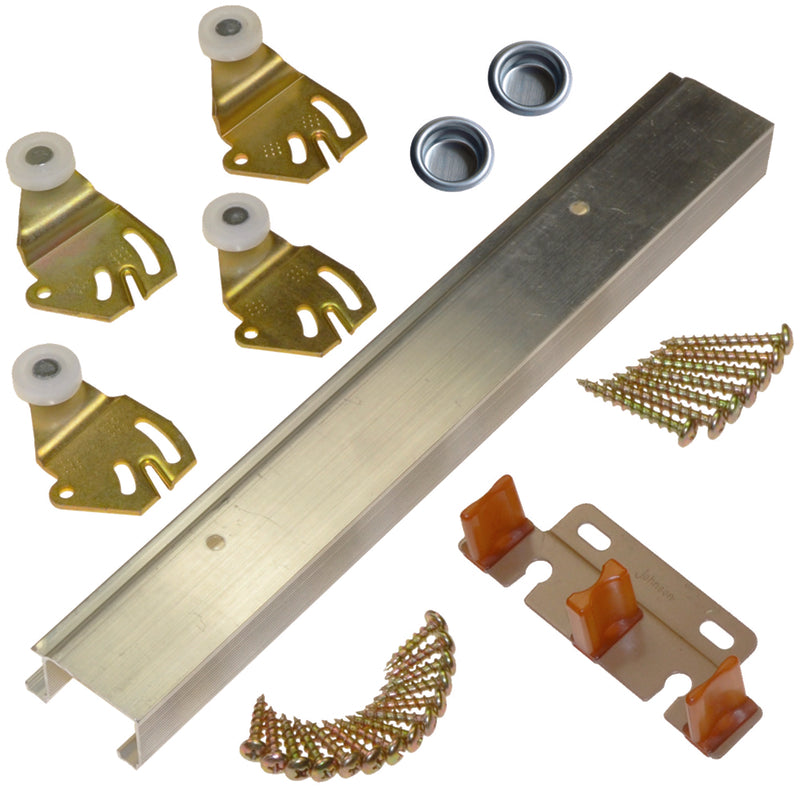

Johnson Hardware 2200 Aluminum By-Pass Door Hardware Set


Sale price$35.23


The 2200 is general purpose residential grade sliding by-pass door hardware for 3/4" [19mm] OR 1-3/8" [35mm] thick doors featuring a extruded aluminum track. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. Hangers include one or two 7/8" [22mm] dia. molded nylon machine turned wheels with three point locking plates. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick door alignment.

  • Brand Name: Johnson Hardware
  • Sub Brand: 2200
  • Material: Aluminum
  • Product Type: By-Pass Door Hardware Set
  • Screws Included: Yes
  • Maximum Door Thickness: 1-3/8 in.
  • Commercial or Residential: Residential
  • Length: 48 in.
  • Mounting: Side
  • Hardware Included: Yes
  • Minimum Door Thickness: 3/4 in.
  • Maximum Door Width: 24 in.
  • Wheel Diameter: 7/8 in.
  • Number of Door: 2 doors
  • Pulls Diameter: 3/4 in.
  • Steel Components: 12-14 Gauge
  • Maximum Weight Per Door: 50 lb.
  • Track Length: 47 in.
