NIBCO Press System fittings are the fastest, easiest way to join copper tubing systems in residential and commercial potable, hot, chilled and process water applications for plumbing and HVAC systems. The press fittings can also be installed underground.

• Brand Name: NIBCO
• End 1 Diameter: 1-1/4 in.
• End 1 Type: Press
• End 2 Diameter: 1-1/4 in.
• End 2 Type: Press
• Material: Wrought Copper

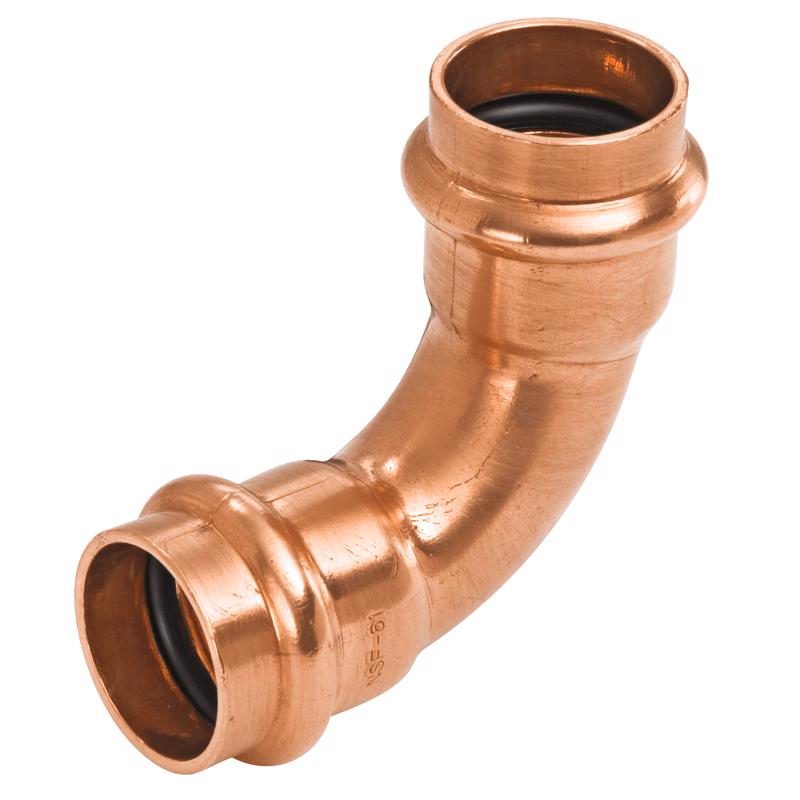

• Product Type: 90 Degree Elbow
• Maximum Working Pressure: 200 psi
• Maximum Working Temperature: 250 �F
• NSF Listing: Yes
• Average Lead Content: Lead-Free
• Underground Rated: No
• Number in Package: 1 pk
• Actual Length: 3.77 in.
• Actual Width: 3.77 in.
• Minimum Working Temperature: -20 deg. F
• Actual Depth: 1-3/4 in.
