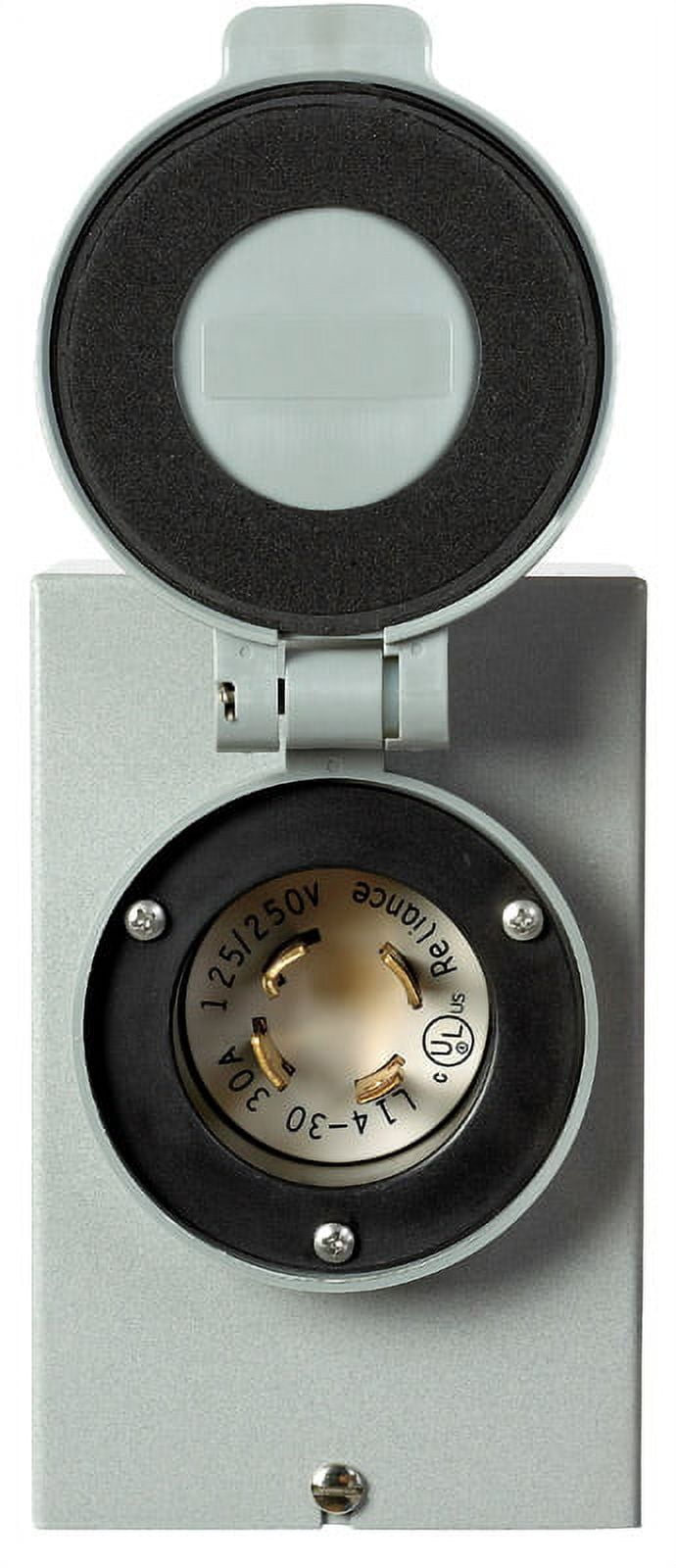

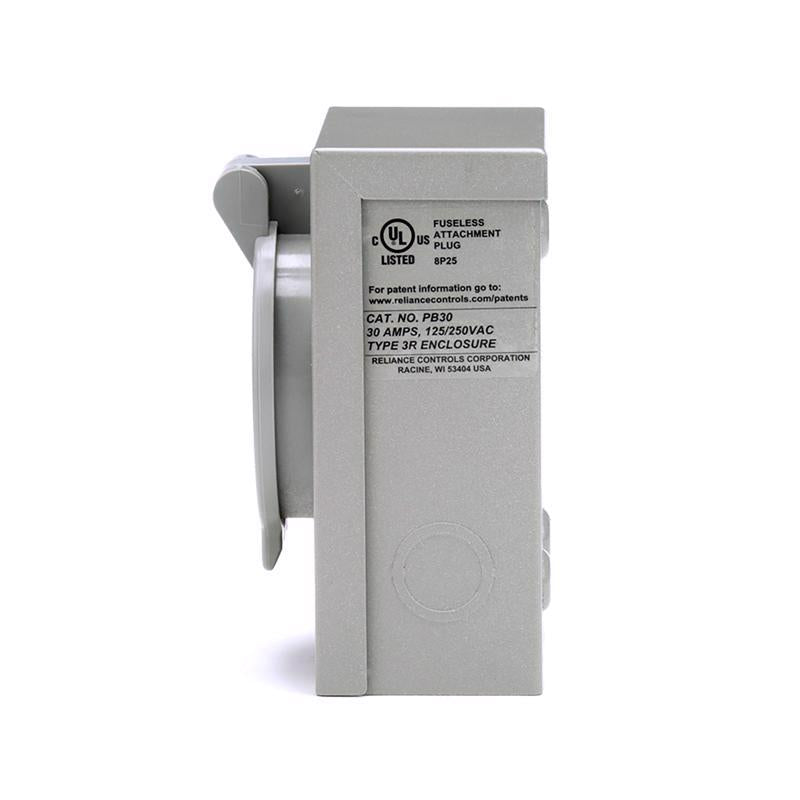

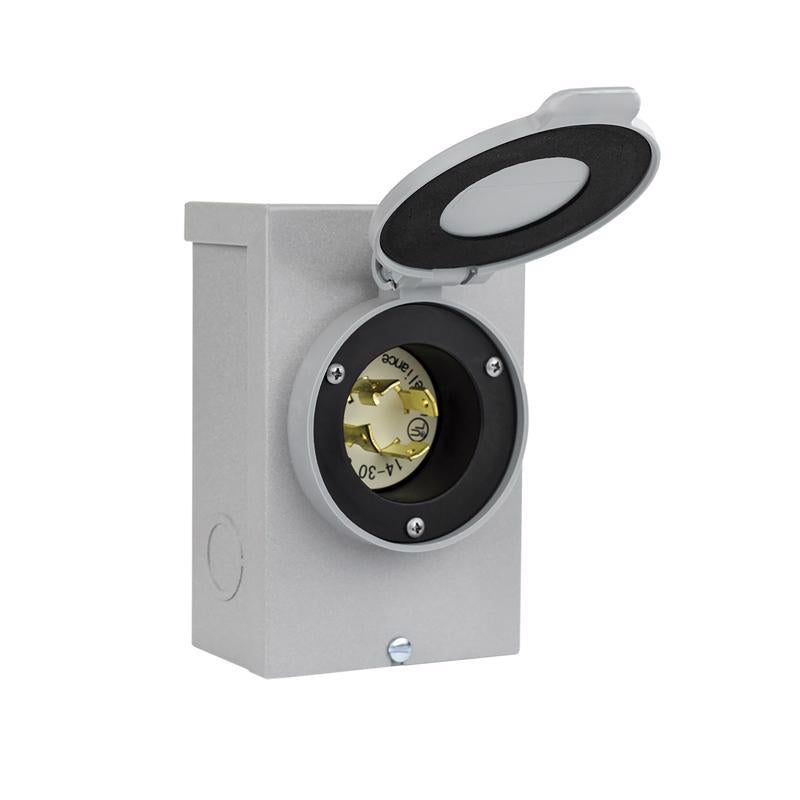

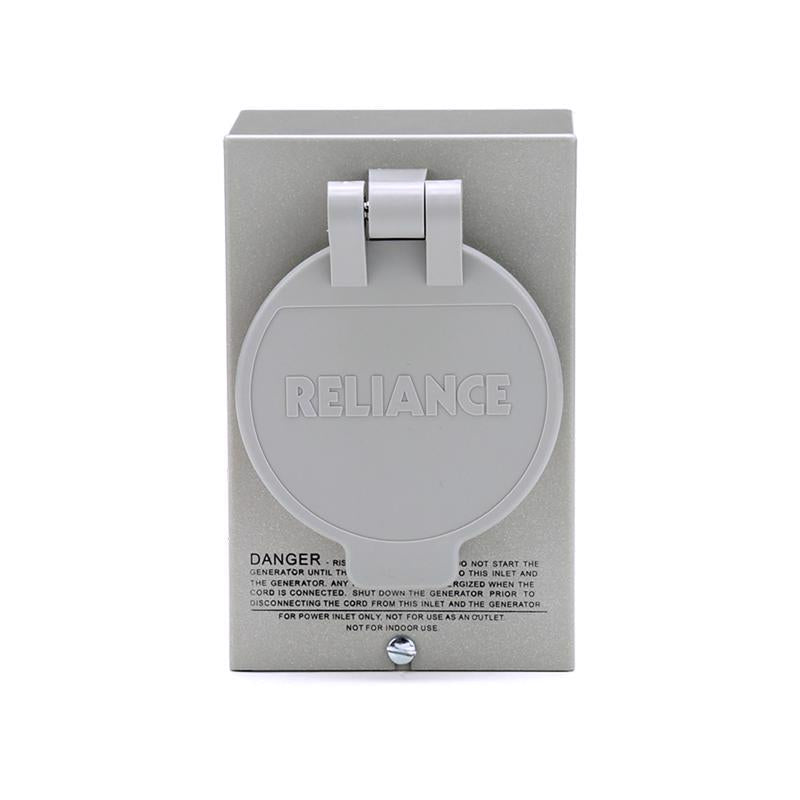

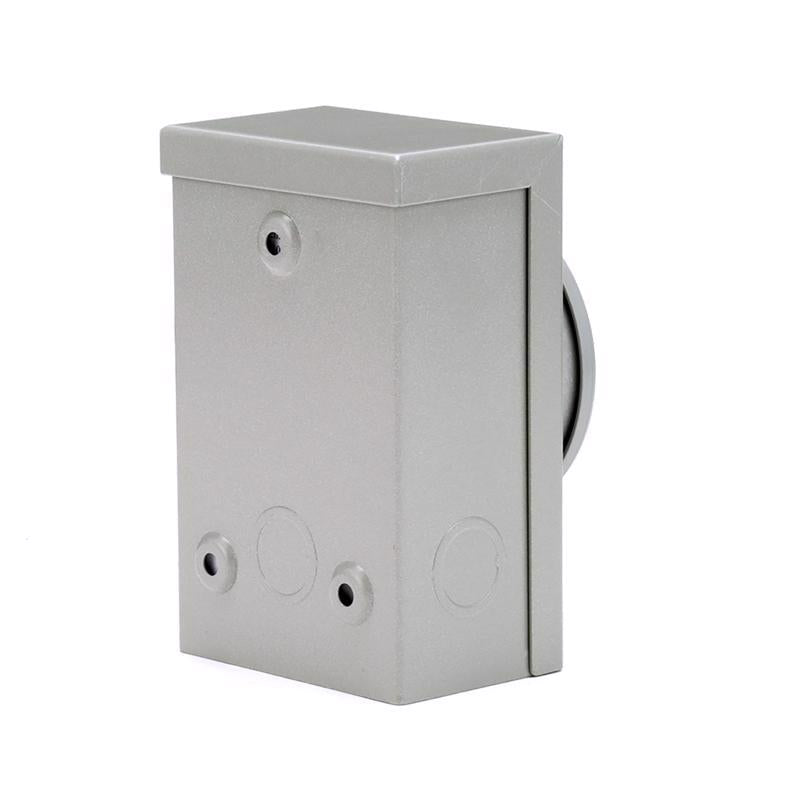

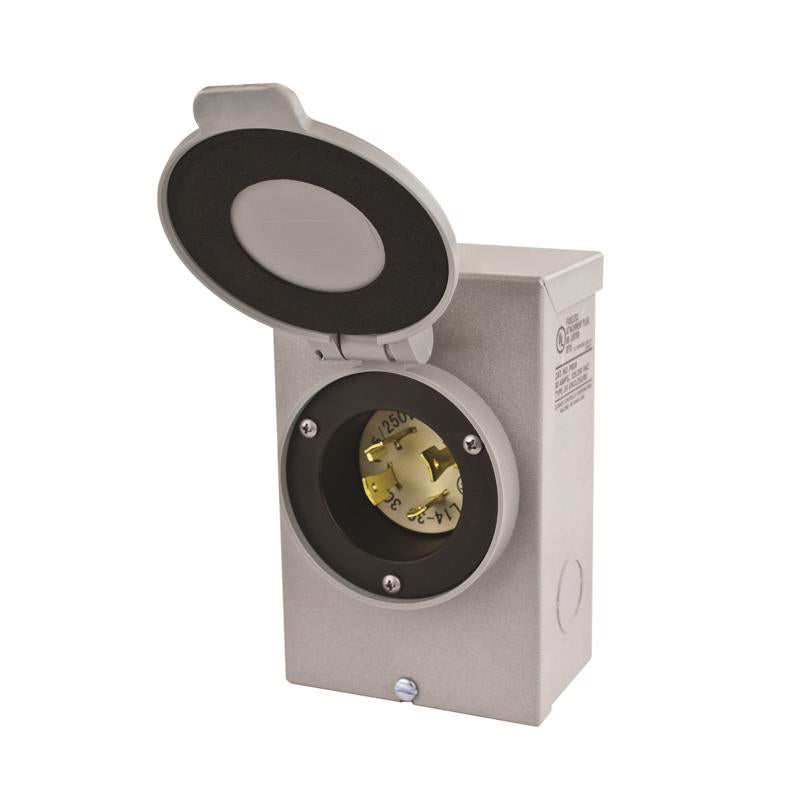

Reliance Controls 30 amps 125/250 V 1 space 4 circuits Surface Mount Power Inlet Box

RELIANCE CONTROLSSKU: 3239100

Price:
Sale price$74.05

Description

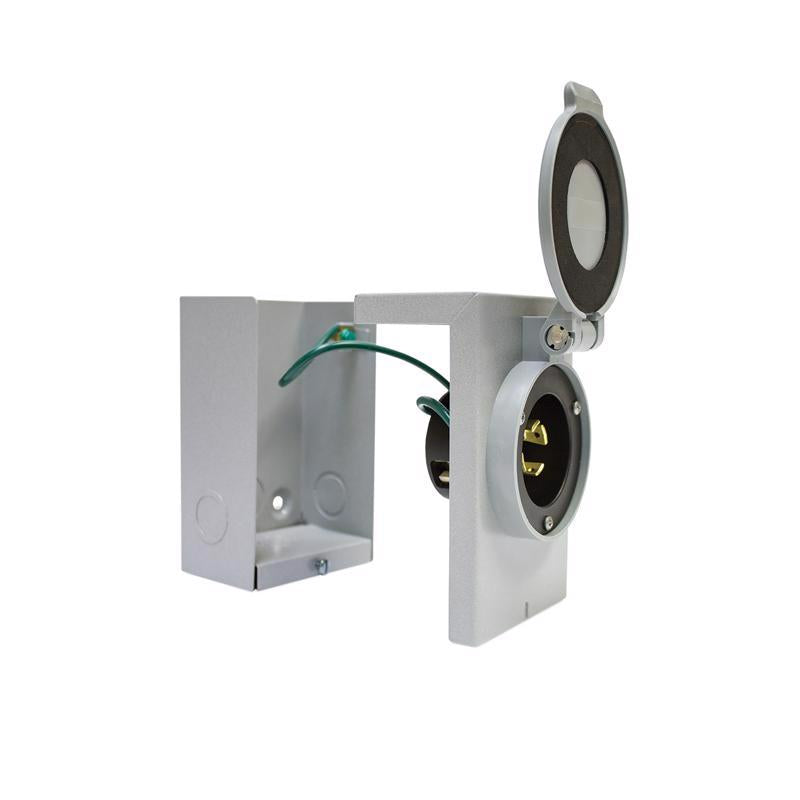

The rain tight NEMA 3R power inlet box is designed for the use with the Pro/Tran transfer switches and Reliance Panel/Link manual transfer panels and generator ready load centers. The power inlet box may be installed indoors or outdoors in an open area where the generator is being used. Using one of the four combination 1/2 inch and 3/4 inch knockouts (one on each side, bottom and back) the power inlet box can be wired directly to the transfer switch or panel. The exclusive patented design provides generous wiring space and facilitates rough in. The PR Series includes circuit breakers that match the amperage of the power inlet. UL listed. The rain tight NEMA 3R PBN Series non metallic power inlet box is designed for use with the Pro/Tran transfer switches and Panel/Link manual transfer panels and generator ready load centers. This power inlet box must be installed outdoors in an open area where the generator is being used. Using one of the three ¾ inch knockouts (one each on the sides and back) the power inlet box can be wired directly to the transfer switch or panel. The patented design provides over 100 cubic inch of wiring space and the slide out base allows easy 360 degree access to the flanged inlet.

  • Brand Name: Reliance Controls
  • Amps: 30 amps
  • Volts: 125/250 V
  • Number of Spaces: 1 space
  • Maximum Number of Circuits: 4 circuits
  • Mounting Type: Surface Mount
  • Product Type: Power Inlet Box
  • Depth: 2-5/8 in.
  • UL Listed: Yes
  • Packaging Type: Boxed
  • Breakers Included: Yes
  • Circuit Protection Type: Single Pole
  • Height: 6 in.
  • Width: 4 in.
  • Indoor or Outdoor: Outdoor
  • Can be hardwired directly to manual transfer switch or transfer panel
  • Includes a NEMA L14-30P flanged inlet plug, inlet: Includes a NEMA L14-30P flanged inlet plug, inlet cover, four combination 1/2 and 3/4 inch knockouts
  • Rated for 30Amp at 125/250VAC, 7,500 watts
