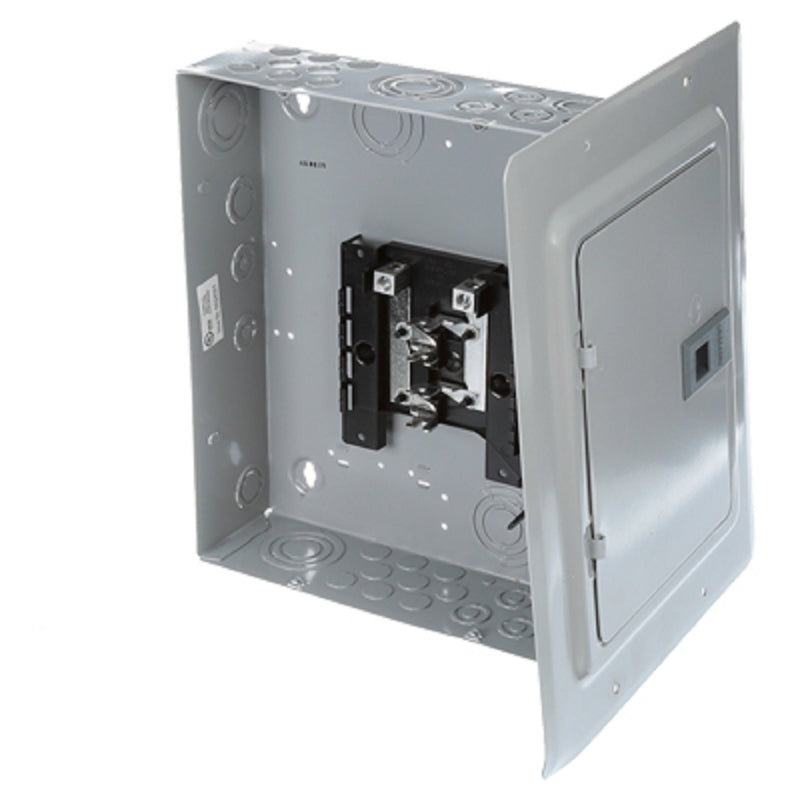

The Siemens Industry, Inc. Indoor Main Lug Load Center has a flush-mount design and is NEMA 1R rated for indoor use. The load center is a single-phase, 3-wire unit with an aluminum buss bar for excellent conductivity. This load center is ANSI certified and UL listed.

• Brand Name: Siemens
• Amps: 125 amps
• Volts: 120/240 V
• Number of Spaces: 8 space
• Maximum Number of Circuits: 16 circuits
• Mounting Type: Flush Mount
• Product Type: Main Lug Load Center
• Depth: 3-7/8 in.
• UL Listed: Yes
• Height: 14-3/4 in.
• Width: 12-3/8 in.
• Indoor or Outdoor: Indoor
• Wiring Configuration: 3-Wire
• Interrupt Rating: 100 kA
• Enclosure Type: NEMA 1
• Phase Type: Single Phase
• Wire Size: 4 to 2/0 AWG
