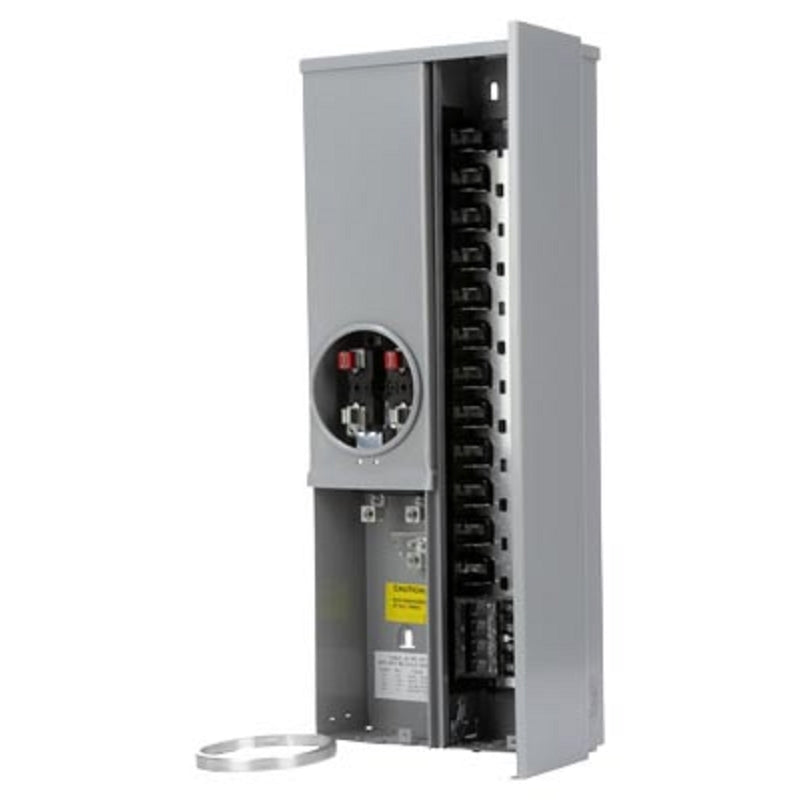

Siemens low voltage meter load center combination. factory installed main breaker 24 (1 inch) spaces interior allowing max 42 circuits. 4-jaw meter/1-phase system rated 200A. These new meter load-center combination devices represent an innovative and versatile addition to Siemens portfolio of high quality, EUSERC and CA title 24 compliant, residential solar solutions.

• Brand Name: Siemens
• Amps: 200 amps
• Volts: 120/240 V
• Number of Spaces: 24 space
• Maximum Number of Circuits: 42 circuits
• Mounting Type: Surface Mount
• Product Type: Meter Breaker Load Center
• Depth: 5-7/16 in.
• UL Listed: Yes
• Circuit Protection Type: Main Breaker
• Height: 35-1/16 in.
• Width: 14-13/16 in.
• Indoor or Outdoor: Indoor and Outdoor
• Busbar Rating: 225 A
• Phase Type: Single Phase
• AIC Maximum Rated: 20000 AIC
