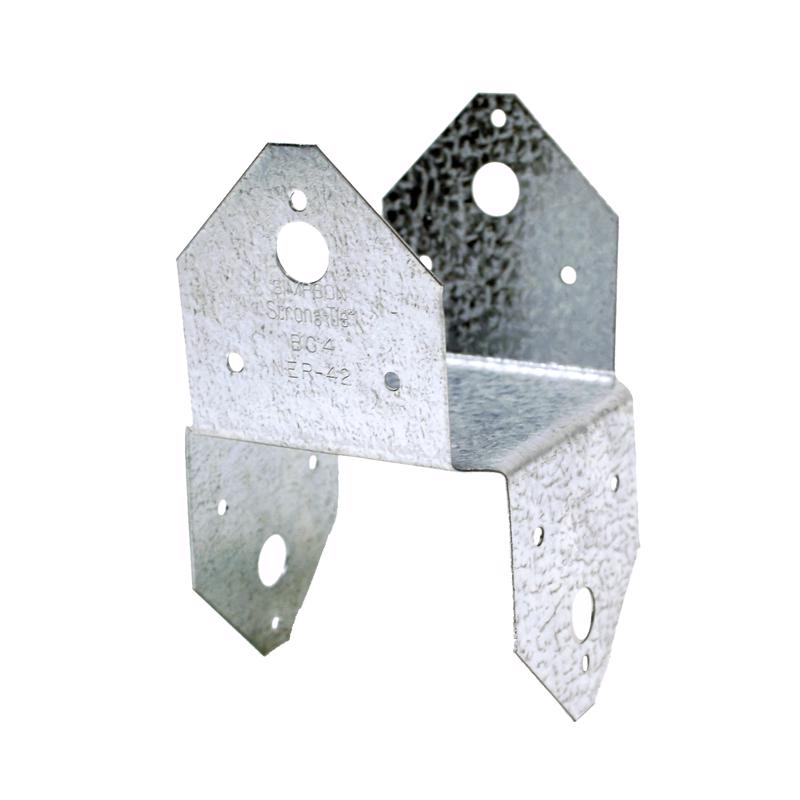

The BCS allows for the connection of (2) 2x's to a 4x post or (3) 2x's to a 6x post. Double-shear nailing between beam and post gives added strength. The BC series offers dual purpose post cap/base for light cap or base connections.

• Brand Name: Simpson Strong-Tie
• Height: 2.5 in.
• Width: 5.5 in.
• Gauge: 18 Ga.
• Material: Galvanized Steel
• Product Type: Half Base
• Width 1: 3-9/16 in., Width 2: 5-1/2 in., Length 1: 4-7/8 in., Length 2: 2-7/8 in., Height 1: 3-1/2 in., Height 2: 2-1/2 in.
