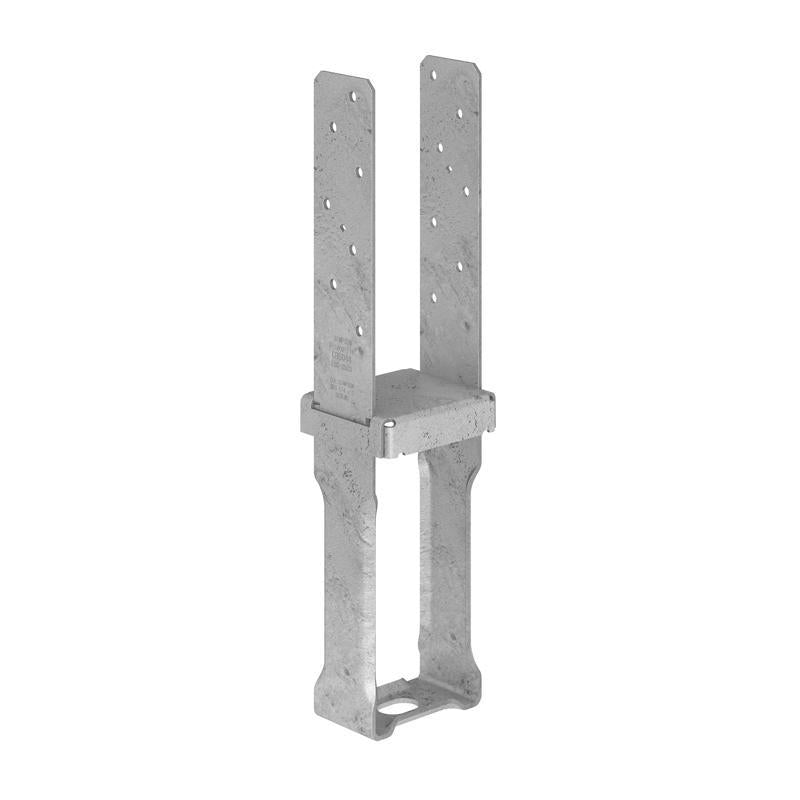

The CBSQ is designed to be the interface between columns and their foundations. The main function of this column base is to link the column to the concrete footing surface and thereby transmit the structures stresses to the foundation. The CBSQ uses Strong-Drive SDS Heavy-Duty Connector screws (included), which allow for fast installation and reduced reveal, and provide a greater net section area of the column than bolts

• Brand Name: Simpson Strong-Tie
• Height: 8.38 in.
• Width: 3.56 in.
• Gauge: 12 Ga.
• Material: Hot Dip Galvanized
• Product Type: Column Base
• Nominal Column Size: 4 x 4
• Width2: 3-1/2 in.
• Depth: 7-1/8 in.
• Strap Gauge: 10 gauge
• Strap Width: 2-1/4 in.
• Style: Standoff
