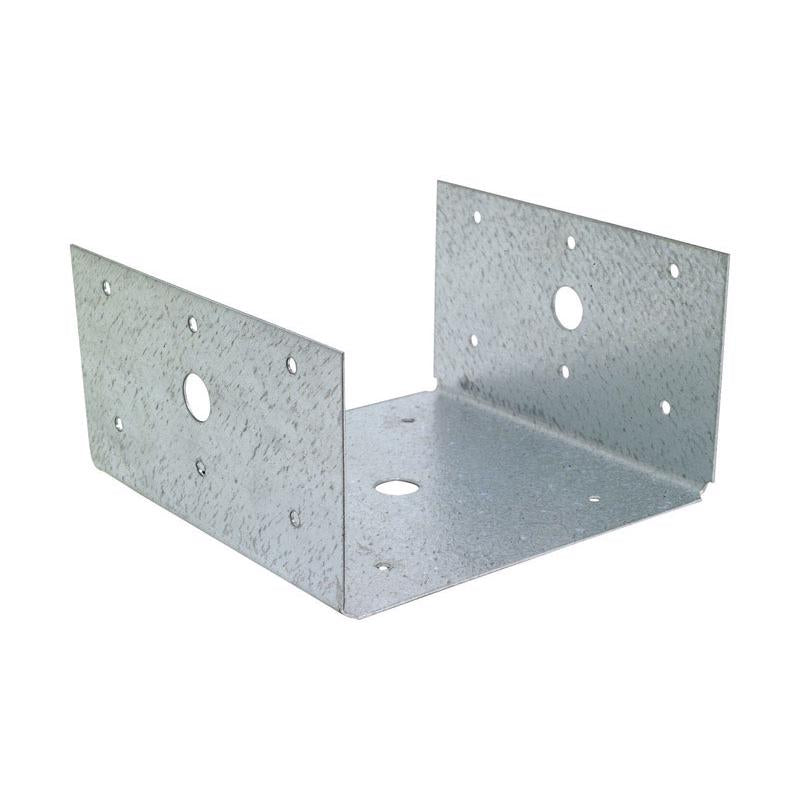

Post and Column Bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The BC series offers dual purpose post cap/base for light cap or base applications.

• Brand Name: Simpson Strong-Tie
• Sub Brand: ZMax
• Height: 5.5 in.
• Width: 5.5 in.
• Gauge: 18 Ga.
• Material: Steel
• Product Type: Half Base
• Joist Fasteners: 16d
• Do not install bolts into pilot holes
• Use all specified fasteners
• Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports)
• To tie multiple 2x members together, the designer: To tie multiple 2x members together, the designer must determine the fasteners required to join members to act as one unit without splitting the wood
• BC: install with 16d commons or 16dx2 1/2" joist hanger nails
