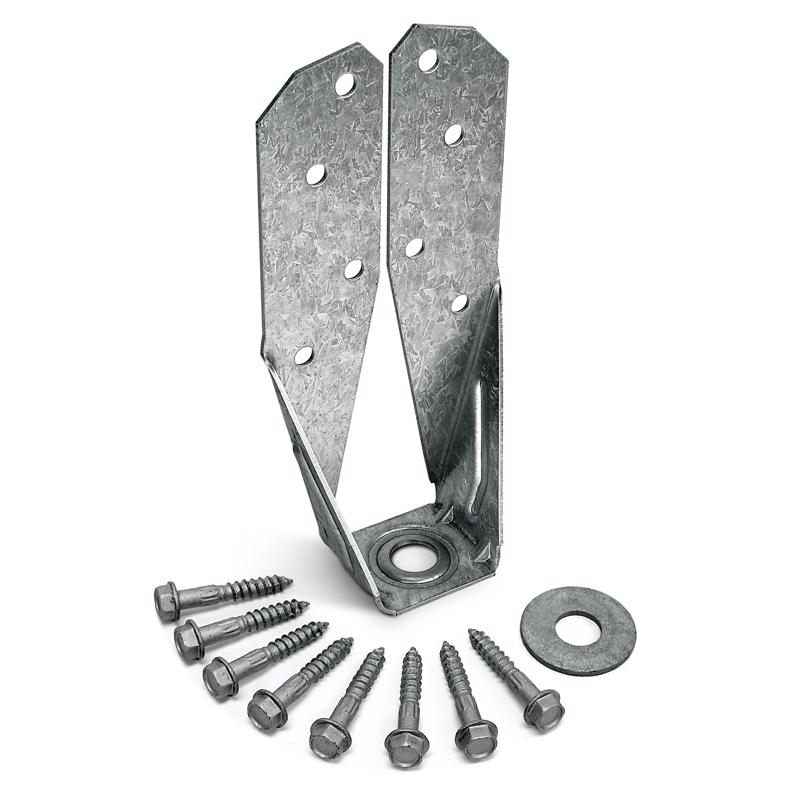

DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction. These versatile DTT connectors are also load-rated as a hold down for light-duty shear walls and braced-wall panel applications. The DTT2 can be used to satisfy the IRC provision for a 1500 lbs. lateral load connection at two locations per deck. Additionally, the DTT2 has been tested and evaluated in deck guardrail post applications to resist the code-specified lateral forces at the top of railing assemblies. The DTT2 is also available with longer 2-1/2 inch strong-drive SDS heavy-duty connector screws (model DTT2Z-SDS2.5) to achieve higher loads when needed. The DTT2 fastens easily to the wide face of a single or double 2x using Simpson Strong-Tie strong-drive SDS heavy-duty Connector screws (included) and accepts a 1/2 inch diameter machine bolt or anchor bolt.

• Brand Name: Simpson Strong-Tie
• Sub Brand: ZMax
• Height: 7.03 in.
• Width: 3.25 in.
• Gauge: 14 Ga.
• Material: Steel
• Product Type: Deck Tension Tie
• Minimum Heel Height: 1/2 in.
• These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced wall panel applications
• The Strong-Tie DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction
