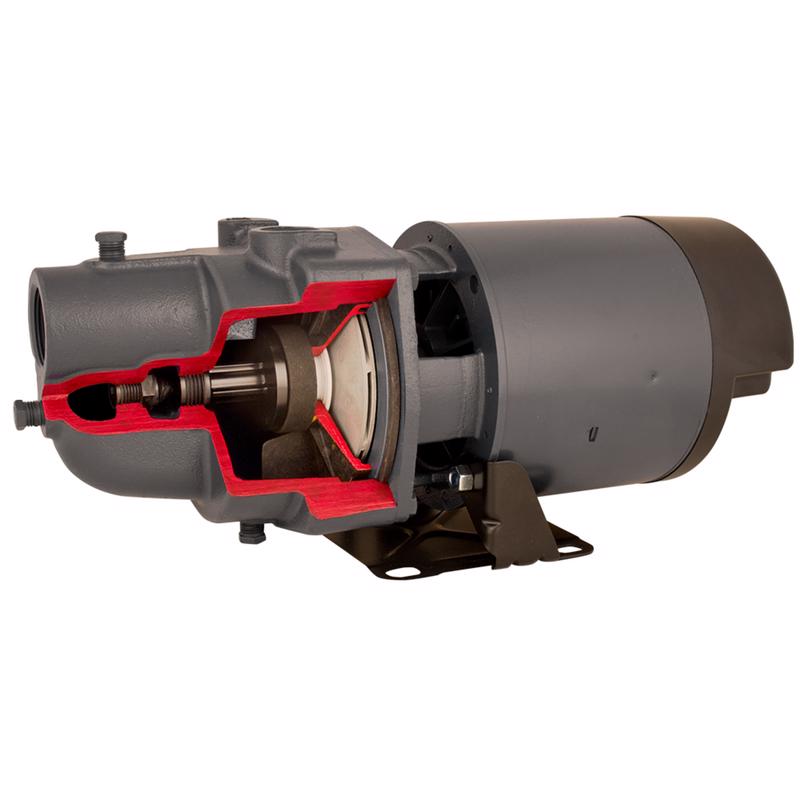

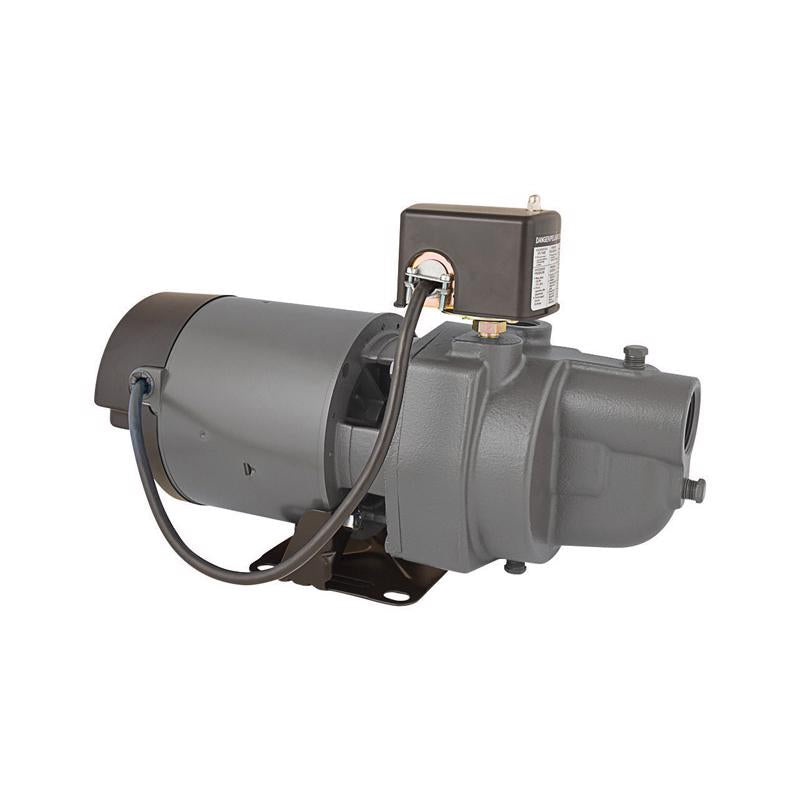

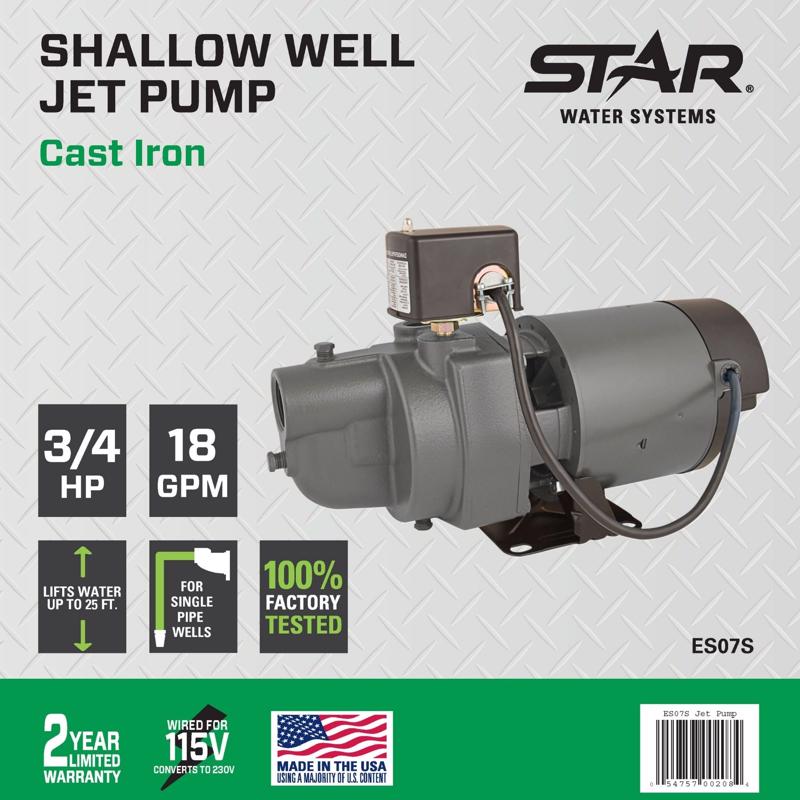

Designed for shallow wells with suction lifts from 0' to 25' (0 to 8 m). These pumps provide capacities up to 930 GPH (3,520 LPH) and pressures up to 50 PSI.

• Brand Name: Star Water Systems
• Horsepower: 3/4 HP
• Maximum Discharge Flow: 930 gph
• Housing Material: Cast Iron
• Pump Type: Shallow
• Product Type: Well Pump
• Volts: 115/230 V
• Amps: 13.0/6.5 amps
• Height: 11 in.
• Width: 10.6 in.
• Depth: 19.5 in.
• Discharge Pipe Size: 1 in.
• Maximum Temperature: 130 �F
• Minimum Temperature: 40 �F
• Maximum Feet of Head: 25 ft.
• Powered By: AC
• Agency Compliance: CSA and UL
• Corrosion Resistant: Yes
• Self Priming: Non-Self Priming
• With Tank: No
• Hardware Included: No
• Pump Switch Type: Pressure
• Warranty: 2 year Limited Parts and Labor
• Phase: Single-phase
• Stages: Single Stage
• Hertz: 60 Hz
• Inlet Size: 1-1/4 in.
• RPM: 3450 RPM
• Impeller Type: Precision-Balanced, Molded Thermoplastic
• Thermally Protected: Yes
• Weight: 42 lb.
