Description

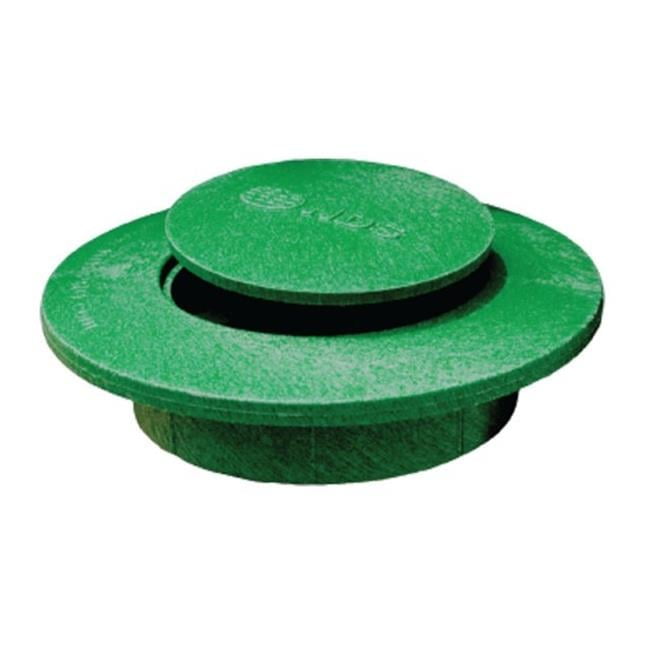

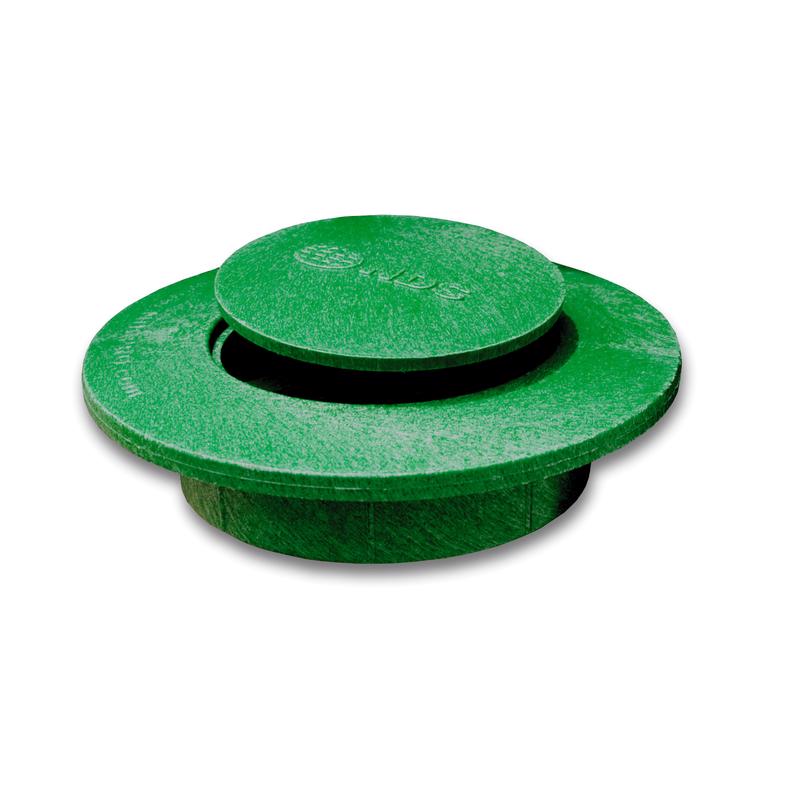

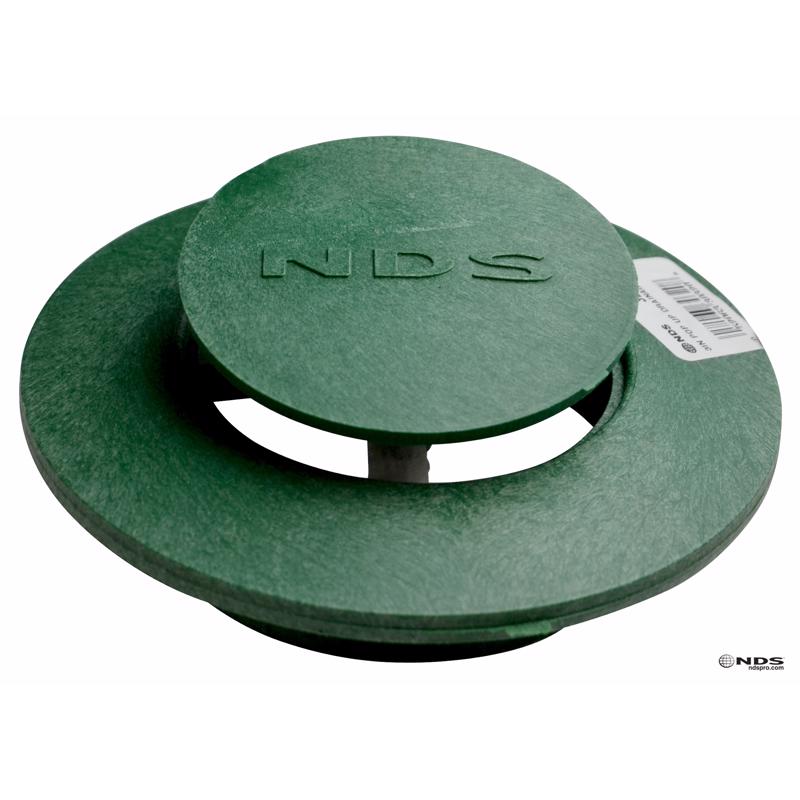

Discharge stormwater runoff captured and conveyed with catch basins, channel drains, drain pipes, and other drainage system components using the Pop-Up Drainage Emitter. As water pressure builds, the cap pops up as high as 1 in., disperses water at up to 56 GPM, and closes once the flow diminishes. Cap remains closed when not in use to prevent debris and rodents from entering and potentially clogging the drainage system. The flat profile design blends discreetly into the surrounding landscape. Rounded contours on interior edges reduce the potential for clogging and internal ribs provide durability and strength. Flange design prevents turf overgrowth. The Pop-Up Drainage Emitter connects to 3 in. and 4 in. sewer and drain fittings which connect to sewer and drain pipe and triple-wall pipe; connects to other pipe types using appropriate adapters. Cap and cover made of high-density polyethylene (HDPE). Pop-Up Drainage Emitters are part of a complete drainage system used for stormwater management. They work with pipes, catch basin drains, channel drains, trench drains, and drain grates that filter, capture, and convey excess water to drain pipes; the pipes carry the water downstream to discharge with a Pop-Up Emitter, or to percolate into the ground with a dry well or infiltration trench.
- Brand Name: NDS
- Width: 5.9 in.
- Depth: 2.9 in.
- Grate Shape: Round
- Product Type: Drainage Emitter
- Push to Connect: Yes
- Packaging Type: Bagged
- Material: Polypropylene
- Color: Green
- Application: Residential and commercial storm water management solutions
- Number in Package: 1
- Minimum Pipe Size: 3 in.
- Maximum Pipe Size: 4 in.
- Number of Outlet Openings: 1 hole
- Flow Rate: 40 gpm
- Weight: 0.28 lb.
- Maximum Compatible Pipe Size: 4 in.
- Minimum Compatible Pipe Size: 3 in.
- 3-7/16 in.
- 5.9 in.
- Sewer Pipe
